Environmental Product Declaration

DURAGRATE ® ISO

Environmental Product Declaration (EPD) for DURAGRATE ® ISO, manufactured by Strongwell. Declaration SmartEPD-2026-150-1038-01.2, prepared according to EPD International PCR for Construction Products 2019:14 (EN 15804:A2:2019/AC:2021) v2.0.1, valid until August 25, 2031.

Download the EPD (PDF)

Declared unit: 1 kg of product
Valid until: August 25, 2031
PCR: EPD International PCR for Construction Products 2019:14 (EN 15804:A2:2019/AC:2021) v1.3.4

Declaration details

Manufacturer: Strongwell
Program operator: Smart EPD
Declaration number: SmartEPD-2026-150-1038-01.2
Date of issue: August 25, 2026
Valid until: August 25, 2031
Product category rules (PCR): EPD International PCR for Construction Products 2019:14 (EN 15804:A2:2019/AC:2021) v2.0.1 (version 2.0.1)
Standard: ISO 14025:2006 and EN 15804+A2:2019/AC:2021
Declared unit: 1 kg of product
System boundary: Cradle to gate with other options (A1 - A3, A4, A5, B1 - B7, C1 - C4, D)
Product specificity: Product Specific
Manufacturing specificity: Facility Specific
Manufacturing plant: Strongwell Bristol, VA Plant (400 Commonwealth Ave, Bristol, Virginia 24201, USA)
Product category: CastDecksAndUnderlayment
Verifier: Terrie Boguski
LCA software: SimaPro 10.3
Program instructions: Smart EPD General Program Instructions v.2.0, March 2025

Life cycle assessment results

Results per 1 kg of product.

Environmental Impact Assessment Results

Indicator	Unit	A1-A3	A4	A5	C1	C2	C4
GWP- total	kg CO2 eq	2.37e+0	2.94e-1	1.04e-1	2.91e-3	1.09e-2	6.41e-3
GWP- fossil	kg CO2 eq	2.51e+0	2.94e-1	8.32e-2	2.91e-3	1.09e-2	6.40e-3
GWP-biogenic	kg CO2 eq	-1.39e-1	4.47e-5	2.07e-2	-1.93e-7	2.85e-6	2.13e-6
GWP-luluc	kg CO2 eq	1.29e-3	1.62e-4	4.59e-5	0	5.11e-6	3.63e-6
ODP	kg CFC11 eq	4.26e-8	4.56e-9	5.05e-10	4.50e-11	1.73e-10	1.87e-10
AP	mol H+ eq	7.78e-3	1.71e-3	2.69e-4	7.17e-6	2.87e-5	4.40e-5
PM	disease incidence	1.01e-7	2.39e-8	4.12e-9	1.27e-10	1.05e-9	1.03e-9
IRP	kBq U235 eq	7.71e+7	3.33e-3	8.88e+5	8.88e+5	1.35e-4	8.99e-5
POCP	kg NMVOC eq	2.15e-2	2.26e-3	2.07e-4	6.97e-6	4.33e-5	6.85e-5
EP-fw	kg P eq	6.11e-4	2.91e-5	1.64e-5	4.01e-9	1.21e-6	5.62e-7
EP-marine	kg N eq	1.97e-3	6.11e-4	1.07e-4	2.22e-6	7.53e-6	1.74e-5
EP-terrestrial	mol N eq	1.97e-2	6.72e-3	6.66e-4	2.47e-5	8.07e-5	1.89e-4
SQI	dimensionless	2.18e+1	3.47e+0	2.90e-1	3.59e-4	1.61e-1	3.07e-1
WDP	m3 world eq deprived	-3.54e+0	1.93e-2	-4.52e-2	-4.73e-2	8.11e-4	6.76e-3
ADP-fossil	MJ, net calorific value	2.84e+1	4.12e+0	8.16e-1	3.38e-2	1.59e-1	1.54e-1
ADP-minerals&metals	kg Sb eq	8.06e-6	8.00e-7	3.00e-7	3.53e-10	3.15e-8	9.52e-9

Resource Use Indicators

Indicator	Unit	A1-A3	A4	A5	C1	C2	C4
PERE	MJ	2.72e+0	5.45e-2	6.43e-2	7.40e-6	2.16e-3	1.40e-3
PERM	MJ	1.50e+0	0	0	0	0	0
PERT	MJ	4.22e+0	5.45e-2	6.43e-2	7.40e-6	2.16e-3	1.40e-3
PENRE	MJ	3.26e+1	4.17e+0	8.81e-1	3.38e-2	1.61e-1	1.56e-1
PENRM	MJ	1.55e+1	0	0	0	0	0
PENRT	MJ	4.81e+1	4.17e+0	8.81e-1	3.38e-2	1.61e-1	1.56e-1
ADP-fossil	MJ	2.84e+1	4.12e+0	8.16e-1	3.38e-2	1.59e-1	1.54e-1
SM	kg	0	0	0	0	0	0
RSF	MJ	0	0	0	0	0	0
NRSF	MJ	0	0	0	0	0	0
FW	m3	-6.83e-2	5.33e-4	-8.15e-4	-9.58e-4	2.22e-5	1.60e-4

Waste and Output Flow Indicators

Indicator	Unit	A1-A3	A5	C4
HWD	kg	0	0	0
NHWD	kg	5.93e-2	9.74e-2	1.02e+0
RWD	kg	0	0	0
CRU	kg	0	0	0
MFR	kg	9.69e-3	0	0
MER	kg	0	0	0
EEE	MJ	0	0	0
EET	MJ	0	0	0

ND = not declared. Life cycle modules: A1-A3 product stage, A4-A5 construction process, B use stage, C end of life, D benefits and loads beyond the system boundary.

Material composition

Product composition
Material/Component Category	Origin	kg Mass
Pigment	U.S.	9.70E-03
Roving 1	U.S.	2.46E-01
unsaturated Polyester Resin	U.S.	3.04E-01
Vinyl Ester Resin	U.S.	1.94E-02
Quartz	U.S.	1.60E-02
Miscellaneous	U.S.	4.90E-01

Packaging
Packaging material	Origin	Mass (kg)
Cardboard	U.S.	0.00609
Paper	U.S.	0.0000363
Plastic	U.S.	0.000828
Plastic wrap	U.S.	0.00119
PU Foam	U.S.	0.000332
Steel	U.S.	0.00109
Wood crate	U.S.	0.0879

Biogenic carbon
Biogenic carbon content	kg C per kg
Biogenic carbon content in product	0
Biogenic carbon content in accompanying packaging	0.0332

Hazardous substances

Scenarios

Transport to the building site (A4)

Fuel type: Diesel
Vehicle type: Truck
Transport distance: 1960 km
Capacity utilization: 50%
Weight of products transported: 1 kg
Packaging mass: 9.74E-02

End of life (C1-C4)

Collected with mixed construction waste: 1.019 kg
Landfill: 1.019 kg
Product or material for final disposal: 1 kg

Product description

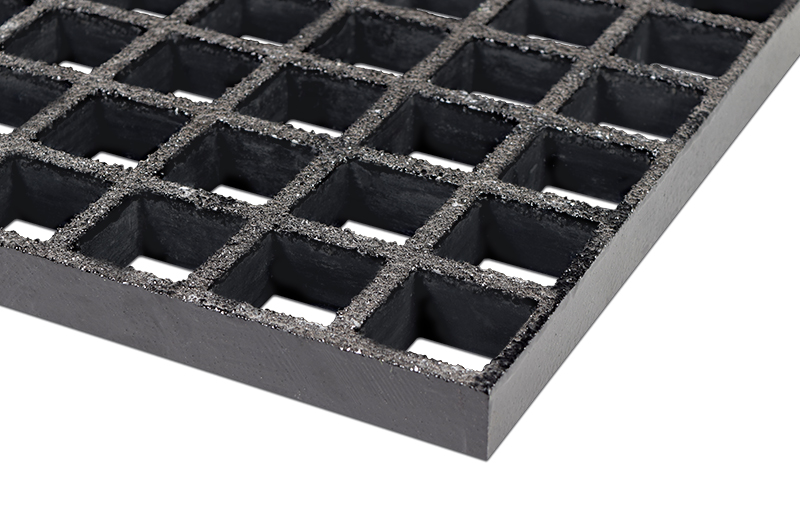

DURAGRATE ® ISO is a premium-quality molded fiberglass mesh grating panel manufactured using an isophthalic polyester resin system and features corrosion resistance, fire retardance, impact resistance, bidirectional load bearing, low electrical and thermal conductivity, and ease of installation. It is suited for chemical-resistant industrial flooring, walkways, platforms, and trench covers in moderately corrosive environments where improved corrosion resistance over standard grades is required.

Interpretation

The cradle-to-gate GWP of DURAGRATE ® ISO is 2.37E+00 kg CO₂ eq per kg of declared product. Raw material extraction (A1) is the dominant contributor at 77% of total GWP, driven by polyester resin and glass fiber reinforcement. Transport of raw materials (A2) contributes 3%. The manufacturing stage (A3) accounts for 20% of GWP, from electricity consumption at the VA facility using the US-SERC grid. Acidification potential (AP) is 7.78E-03 mol H⁺ eq. Abiotic depletion potential for fossil resources (ADP-fossil) is 2.84E+01 MJ, NCV. Net water deprivation potential (WDP) is negative (−3.54E+00 m³ world eq.), reflecting the specific water consumption profile of the isophthalic resin production process. Photochemical ozone creation potential (POCP) is 2.15E-02 kg NMVOC eq. Freshwater eutrophication potential (EP-fw) is 6.11E-04 kg P eq. No secondary materials or renewable secondary fuels are used in the production of this product.

LCIA results are relative expressions and do not predict impacts on category endpoints, the exceeding of thresholds, safety margins or risks. EPDs are comparable only when they follow the same PCR, functional unit and system boundary. The full EPD (PDF) contains the methodology, scenario assumptions and verification statement.
