Environmental Product Declaration

DURAGRATE ® VE

Environmental Product Declaration (EPD) for DURAGRATE ® VE, manufactured by Strongwell. Declaration SmartEPD-2026-150-1041-01.2, prepared according to EPD International PCR for Construction Products 2019:14 (EN 15804:A2:2019/AC:2021) v2.0.1, valid until August 25, 2031.

Download the EPD (PDF)

Declared unit: 1 kg of product
Valid until: August 25, 2031
PCR: EPD International PCR for Construction Products 2019:14 (EN 15804:A2:2019/AC:2021) v1.3.4

Declaration details

Manufacturer: Strongwell
Program operator: Smart EPD
Declaration number: SmartEPD-2026-150-1041-01.2
Date of issue: August 25, 2026
Valid until: August 25, 2031
Product category rules (PCR): EPD International PCR for Construction Products 2019:14 (EN 15804:A2:2019/AC:2021) v2.0.1 (version 2.0.1)
Standard: ISO 14025:2006 and EN 15804+A2:2019/AC:2021
Declared unit: 1 kg of product
System boundary: Cradle to gate with other options (A1 - A3, A4, A5, B1 - B7, C1 - C4, D)
Product specificity: Product Specific
Manufacturing specificity: Facility Specific
Manufacturing plant: Strongwell Bristol, VA Plant (400 Commonwealth Ave, Bristol, Virginia 24201, USA)
Product category: CastDecksAndUnderlayment
Verifier: Terrie Boguski
LCA software: SimaPro 10.3
Program instructions: Smart EPD General Program Instructions v.2.0, March 2025

Life cycle assessment results

Results per 1 kg of product.

Environmental Impact Assessment Results

Indicator	Unit	A1-A3	A4	A5	C1	C2	C4
GWP- total	kg CO2 eq	3.68e+0	2.94e-1	1.04e-1	2.91e-3	1.09e-2	6.41e-3
GWP- fossil	kg CO2 eq	3.82e+0	2.94e-1	8.32e-2	2.91e-3	1.09e-2	6.40e-3
GWP-biogenic	kg CO2 eq	-1.43e-1	4.47e-5	2.06e-2	-1.93e-7	2.85e-6	2.13e-6
GWP-luluc	kg CO2 eq	3.17e-3	1.61e-4	4.59e-5	0	5.11e-6	3.63e-6
ODP	kg CFC11 eq	9.95e-8	4.55e-9	5.04e-10	4.50e-11	1.73e-10	1.87e-10
AP	mol H+ eq	1.44e-2	1.71e-3	2.69e-4	7.17e-6	2.87e-5	4.40e-5
PM	disease incidence	1.85e-7	2.39e-8	4.11e-9	1.27e-10	1.05e-9	1.03e-9
IRP	kBq U235 eq	5.38e+7	3.33e-3	8.88e+5	8.88e+5	1.35e-4	8.99e-5
POCP	kg NMVOC eq	2.63e-2	2.26e-3	2.07e-4	6.97e-6	4.33e-5	6.85e-5
EP-fw	kg P eq	1.15e-3	2.91e-5	1.64e-5	4.01e-9	1.21e-6	5.62e-7
EP-marine	kg N eq	3.11e-3	6.11e-4	1.06e-4	2.22e-6	7.53e-6	1.74e-5
EP-terrestrial	mol N eq	3.07e-2	6.71e-3	6.66e-4	2.47e-5	8.07e-5	1.89e-4
SQI	dimensionless	2.81e+1	3.46e+0	2.89e-1	3.59e-4	1.61e-1	3.07e-1
WDP	m3 world eq deprived	-2.06e+0	1.92e-2	-4.51e-2	-4.73e-2	8.11e-4	6.76e-3
ADP-fossil	MJ, net calorific value	5.84e+1	4.12e+0	8.16e-1	3.38e-2	1.59e-1	1.54e-1
ADP-minerals&metals	kg Sb eq	2.38e-5	8.00e-7	3.00e-7	3.53e-10	3.15e-8	9.52e-9

Resource Use Indicators

Indicator	Unit	A1-A3	A4	A5	C1	C2	C4
PERE	MJ	4.29e+0	5.45e-2	6.43e-2	7.40e-6	2.16e-3	1.40e-3
PERM	MJ	1.49e+0	0	0	0	0	0
PERT	MJ	5.79e+0	5.45e-2	6.43e-2	7.40e-6	2.16e-3	1.40e-3
PENRE	MJ	6.40e+1	4.17e+0	8.80e-1	3.38e-2	1.61e-1	1.56e-1
PENRM	MJ	1.45e+1	0	0	0	0	0
PENRT	MJ	7.85e+1	4.17e+0	8.80e-1	3.38e-2	1.61e-1	1.56e-1
ADP-fossil	MJ	5.84e+1	4.12e+0	8.16e-1	3.38e-2	1.59e-1	1.54e-1
SM	kg	0	0	0	0	0	0
RSF	MJ	0	0	0	0	0	0
NRSF	MJ	0	0	0	0	0	0
FW	m3	-3.59e-2	5.33e-4	-8.13e-4	-9.58e-4	2.22e-5	1.60e-4

Waste and Output Flow Indicators

Indicator	Unit	A1-A3	A5	C4
HWD	kg	0	0	0
NHWD	kg	5.89e-2	9.68e-2	1.02e+0
RWD	kg	0	0	0
CRU	kg	0	0	0
MFR	kg	9.63e-3	0	0
MER	kg	0	0	0
EEE	MJ	0	0	0
EET	MJ	0	0	0

ND = not declared. Life cycle modules: A1-A3 product stage, A4-A5 construction process, B use stage, C end of life, D benefits and loads beyond the system boundary.

Material composition

Product composition
Material/Component Category	Origin	kg Mass
Pigment	U.S.	9.08E-03
Roving 1	U.S.	2.33E-01
Vinyl Ester Resin	U.S.	3.88E-01
Quartz	U.S.	9.53E-03
Miscellaneous	U.S.	4.39E-01

Packaging
Packaging material	Origin	Mass (kg)
Cardboard	U.S.	0.00605
Paper	U.S.	0.0000361
Plastic	U.S.	0.000823
Plastic wrap	U.S.	0.00118
PU Foam	U.S.	0.00033
Steel	U.S.	0.00109
Wood crate	U.S.	0.0873

Biogenic carbon
Biogenic carbon content	kg C per kg
Biogenic carbon content in accompanying packaging	0.033

Hazardous substances

Scenarios

Transport to the building site (A4)

Fuel type: Diesel
Vehicle type: Truck
Transport distance: 1960 km
Capacity utilization: 50%
Weight of products transported: 1 kg
Packaging mass: 9.68E-02

End of life (C1-C4)

Collected with mixed construction waste: 1.019 kg
Landfill: 1.019 kg
Product or material for final disposal: 1 kg

Product description

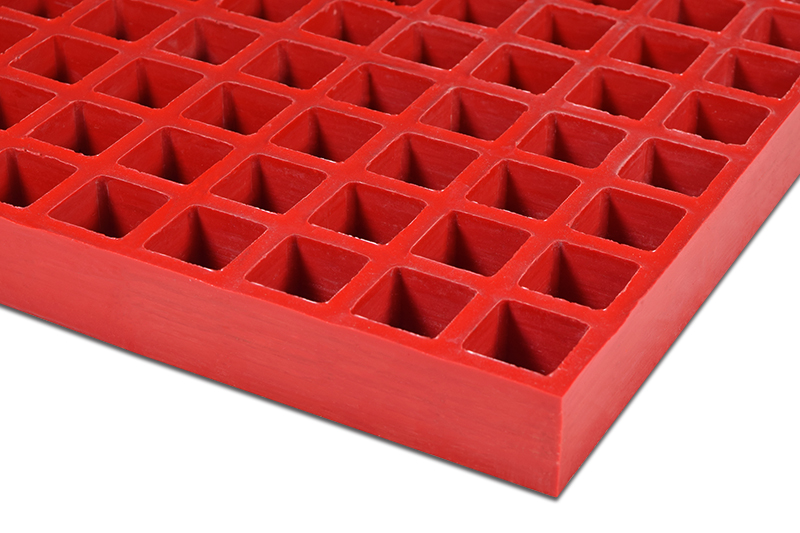

DURAGRATE ® VE is a premium-quality molded fiberglass mesh grating panel manufactured using a vinyl ester resin system. It offers corrosion resistance, fire retardance, impact resistance, bidirectional load bearing, low electrical and thermal conductivity, and ease of installation. It is suited for industrial flooring, walkways, platforms, and trench covers in highly aggressive corrosive environments including chemical processing, pulp and paper, marine, and wastewater treatment applications.

Interpretation

The cradle-to-gate GWP of DURAGRATE ® VE is 3.68E+00 kg CO₂ eq per kg of declared product. Raw material extraction (A1) dominates at 85% of total GWP. Transport of raw materials (A2) contributes 2%. The manufacturing stage (A3) accounts for 13% of GWP, from electricity at the VA facility using the US-SERC grid. Acidification potential (AP) is 1.44E-02 mol H⁺ eq. Abiotic depletion potential for fossil resources (ADP-fossil) is 5.84E+01 MJ, NCV, reflecting the energy-intensive vinyl ester resin production process. Net water deprivation potential (WDP) is negative (−2.06E+00 m³ world eq.). Photochemical ozone creation potential (POCP) is 2.63E-02 kg NMVOC eq. Freshwater eutrophication potential (EP-fw) is 1.15E-03 kg P eq. No secondary materials or renewable secondary fuels are used in the production of this product.

LCIA results are relative expressions and do not predict impacts on category endpoints, the exceeding of thresholds, safety margins or risks. EPDs are comparable only when they follow the same PCR, functional unit and system boundary. The full EPD (PDF) contains the methodology, scenario assumptions and verification statement.
