DURAGRID® PHENOLIC

Declaration details

Manufacturer

Strongwell

Program operator

Smart EPD

Declaration number

SmartEPD-2026-150-1009-01.3

Date of issue

August 7, 2026

Valid until

August 7, 2031

Product category rules (PCR)

EPD International PCR for Construction Products 2019:14 (EN 15804:A2:2019/AC:2021) v2.0.1 (version 2.0.1)

Standard

ISO 14025:2006 and EN 15804+A2:2019/AC:2021

Declared unit

1 kg of product

System boundary

Cradle to gate with other options (A1 - A3, A4, A5, B1 - B7, C1 - C4, D)

Product specificity

Product Specific

Manufacturing specificity

Facility Specific

Manufacturing plant

Strongwell Chatfield, MN Plant (1610 U.S. 52, Chatfield, MN 55923, USA)

Product category

CastDecksAndUnderlayment

Verifier

Terrie Boguski

LCA software

SimaPro 10.3

Program instructions

Smart EPD General Program Instructions v.2.0, March 2025

Life cycle assessment results

Results per 1 kg of product.

Environmental Impact Assessment Results

Resource Use Indicators

Waste and Output Flow Indicators

ND = not declared. Life cycle modules: A1-A3 product stage, A4-A5 construction process, B use stage, C end of life, D benefits and loads beyond the system boundary.

Material composition

Hazardous substances

NA

Scenarios

Transport to the building site (A4)

Fuel type

Diesel

Vehicle type

Truck

Transport distance

1960 km

Capacity utilization

50%

Weight of products transported

1 kg

Packaging mass

0.1026 kg

End of life (C1-C4)

Collected with mixed construction waste

1.019 kg

Landfill

1.019 kg

Product or material for final disposal

1 kg

Product description

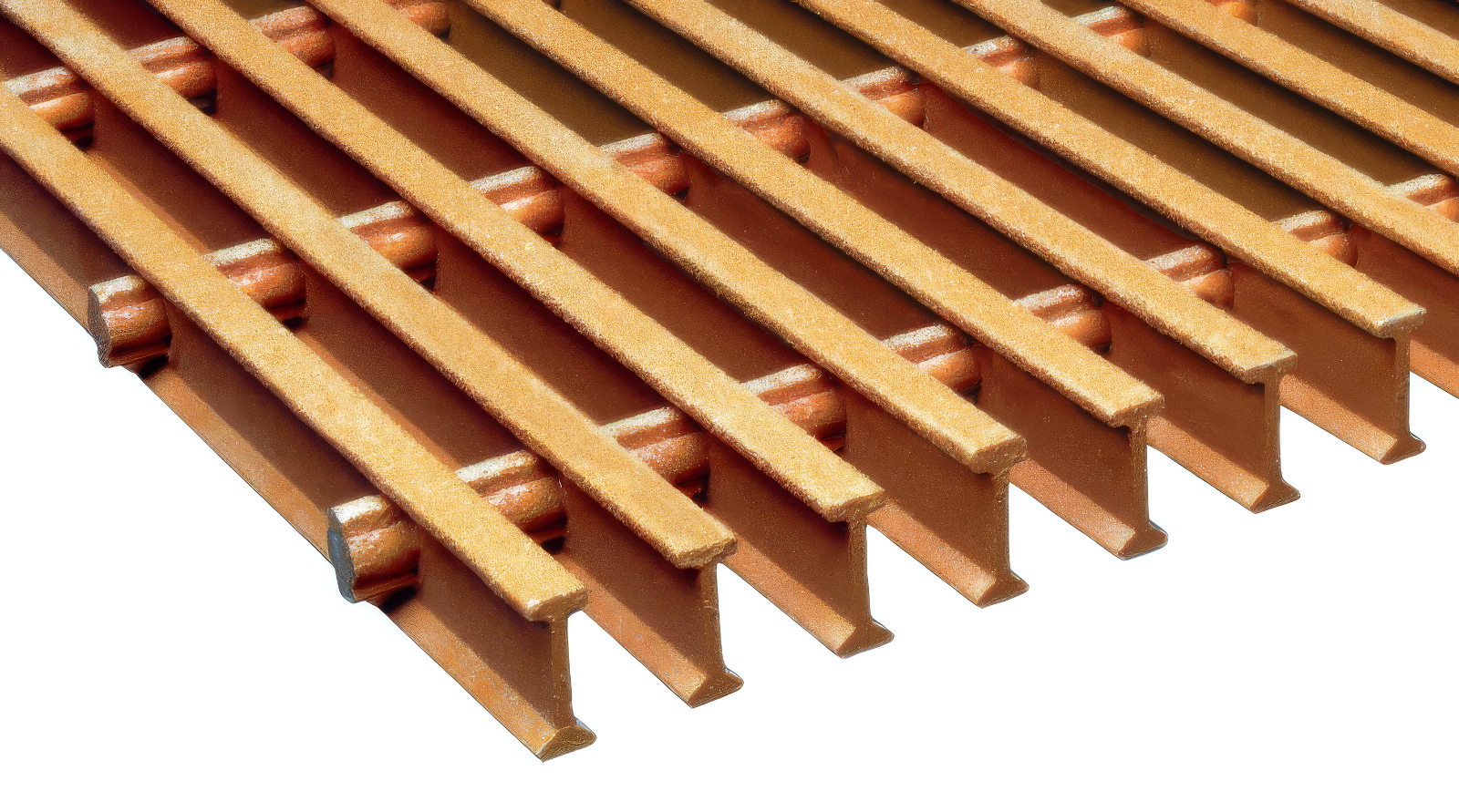

DURAGRID® PHENOLIC is a pultruded fiberglass bar grating product manufactured by Strongwell Corporation, the EPD owner, using the pultrusion process, in which continuous glass fiber reinforcements are drawn through a thermosetting resin bath and shaped through a heated die to produce constant cross-section composite profiles. The product is often used in the oil and gas industry because of its increased fire and smoke performance, and is manufactured at Strongwell's Chatfield, Minnesota facility. Although the product carries a warranty of 1 year, it is expected to last the lifetime of the structure on which it is installed.
