Environmental Product Declaration
X-AOV / Access Hatch - Glass Lid
by VELUX
Environmental Product Declaration (EPD) for X-AOV / Access Hatch - Glass Lid, manufactured by VELUX. Declaration SmartEPD-2026-077-0905-01, prepared according to IBU Part B: Requirements on the EPD for Windows and Doors, valid until June 5, 2031.
- Declared unit
- 1 m2 of product of a window ≤ 2,3 m² (reference dimensions according to EN 17213: 1,23 m × 1,48 m)
- Valid until
- June 5, 2031
- PCR
- Windows and Doors
Declaration details
- Manufacturer
- VELUX
- Program operator
- Smart EPD
- Declaration number
- SmartEPD-2026-077-0905-01
- Date of issue
- June 5, 2026
- Valid until
- June 5, 2031
- Product category rules (PCR)
- IBU Part B: Requirements on the EPD for Windows and Doors (version 1.0/1.7/1.4)
- Standard
- ISO 14025:2006 and EN 15804:2012+A2:2019/AC:2021
- Declared unit
- 1 m2 of product of a window ≤ 2,3 m² (reference dimensions according to EN 17213: 1,23 m × 1,48 m)
- System boundary
- Cradle to gate with other options (A1 - A3, A4, A5, C1 - C4, D)
- Product specificity
- Product Specific
- Manufacturing specificity
- Facility Specific
- Manufacturing plant
- VELUX, Northumberland, UK (Blyth Riverside Business Park, Spencer Road, Blyth, Northumberland NE24 5TG, UK)
- Product category
- Openings › TranslucentWallAndRoofAssemblies
- Product SKU
- Access Hatch - Glass Lid
- Product service life
- 30 years
- Verifier
- Rifat Karim, Independent Consultant
- LCA software
- SimaPro 10.2
- Program instructions
- Smart EPD General Program Instructions v.2.0, March 2025
Life cycle assessment results
Results per 1 m2 of product of a window ≤ 2,3 m² (reference dimensions according to EN 17213: 1,23 m × 1,48 m).
Environmental Impact Assessment Results
| Indicator | Unit | A1-A3 | A4 | A5 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|
| GWP-total | kg CO2 eq | 1.02e+3 | 1.37e+1 | 3.97e+1 | 0 | 8.88e-1 | 3.05e+1 | 1.18e-1 | -4.04e+2 |
| GWP-biogenic | kg CO2 eq | 8.78e-2 | 1.09e-2 | 3.02e+0 | 0 | 7.07e-4 | 2.38e-3 | -4.22e-3 | 1.66e+0 |
| GWP-fossil | kg CO2 eq | 1.01e+3 | 1.37e+1 | 3.66e+1 | 0 | 8.86e-1 | 3.05e+1 | 1.22e-1 | -4.04e+2 |
| GWP-luluc | kg CO2 eq | 2.42e+0 | 6.69e-3 | 7.29e-2 | 0 | 4.32e-4 | 2.42e-4 | 2.64e-4 | -1.12e+0 |
| ODP | kg CFC11 eq | 5.41e-5 | 3.11e-7 | 1.65e-6 | 0 | 2.01e-8 | 3.18e-8 | 1.94e-9 | -4.81e-6 |
| AP | mol H+ eq | 5.85e+0 | 3.40e-2 | 1.79e-1 | 0 | 2.19e-3 | 7.05e-3 | 9.89e-4 | -2.61e+0 |
| EP-freshwater | kg P eq | 2.99e-1 | 1.01e-3 | 9.04e-3 | 0 | 6.54e-5 | 9.38e-5 | 1.49e-5 | -1.22e-1 |
| EP-marine | kg N eq | 1.11e+0 | 9.25e-3 | 3.47e-2 | 0 | 5.98e-4 | 4.00e-3 | 4.25e-4 | -4.23e-1 |
| EP-terrestrial | mol N eq | 1.13e+1 | 9.50e-2 | 3.52e-1 | 0 | 6.14e-3 | 3.42e-2 | 4.60e-3 | -4.44e+0 |
| POCP | kg NMVOC eq | 3.57e+0 | 5.54e-2 | 1.12e-1 | 0 | 3.58e-3 | 8.65e-3 | 1.43e-3 | -1.41e+0 |
| ADP-minerals&metals | kg Sb eq | 5.96e-3 | 3.84e-5 | 1.81e-4 | 0 | 2.48e-6 | 1.51e-6 | 6.85e-8 | 3.15e-3 |
| ADP-fossil | MJ | 1.31e+4 | 2.08e+2 | 4.03e+2 | 0 | 1.35e+1 | 5.96e+0 | 1.53e+0 | -3.85e+3 |
| WDP | m3 depriv. | 1.79e+2 | 9.94e-1 | 5.72e+0 | 0 | 6.43e-2 | 1.37e+0 | 6.68e-3 | -4.47e+1 |
Resource Use Indicators
| Indicator | Unit | A1-A3 | A4 | A5 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|
| PERE | MJ | 1.73e+3 | 3.05e+0 | 5.22e+1 | 0 | 1.97e-1 | 2.37e-1 | 1.01e-1 | -3.71e+2 |
| PERM | MJ | 2.49e+1 | 0 | 7.46e-1 | 0 | 0 | 0 | 0 | 0 |
| PERT | MJ | 1.76e+3 | 3.05e+0 | 5.29e+1 | 0 | 1.97e-1 | 2.37e-1 | 1.01e-1 | -3.71e+2 |
| PENRE | MJ | 1.31e+4 | 2.08e+2 | 4.03e+2 | 0 | 1.35e+1 | 5.96e+0 | 1.53e+0 | -3.85e+3 |
| PENRM | MJ | 4.84e+0 | 8.78e-3 | 1.46e-1 | 0 | 5.67e-4 | 2.60e-4 | 2.71e-5 | 1.60e-1 |
| PENRT | MJ | 1.31e+4 | 2.08e+2 | 4.03e+2 | 0 | 1.35e+1 | 5.96e+0 | 1.53e+0 | -3.85e+3 |
| SM | kg | 1.82e+1 | 0 | 5.47e-1 | 0 | 0 | 0 | 0 | 0 |
| RSF | MJ | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| NRSF | MJ | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| FW | m3 | 6.79e+0 | 2.82e-2 | 2.15e-1 | 0 | 1.82e-3 | 4.34e-2 | 1.80e-4 | -1.95e+0 |
Waste and Output Flow Indicators
| Indicator | Unit | A1-A3 | A4 | A5 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|
| HWD | kg | 3.04e-3 | 0 | 3.52e-3 | 0 | 0 | 0 | 1.14e-1 | 0 |
| NHWD | kg | 5.76e-1 | 0 | 1.54e+0 | 0 | 0 | 0 | 3.46e+1 | 0 |
| RWD | kg | 2.50e-2 | 6.34e-5 | 7.55e-4 | 0 | 4.10e-6 | 2.95e-6 | 2.74e-7 | -1.05e-3 |
| CRU | kg | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| MFR | kg | 5.50e+0 | 0 | 2.05e+1 | 0 | 0 | 6.55e+1 | 0 | 0 |
| MER | kg | 1.76e+0 | 0 | 4.33e+0 | 0 | 0 | 1.41e+1 | 0 | 0 |
| EE | MJ | 2.26e+1 | 0 | 5.05e+1 | 0 | 0 | 1.93e+2 | 0 | 0 |
Carbon Emissions and Removals
| Indicator | Unit | A1-A3 | A4 | A5 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|
| Bio Carbon Removal from Product | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Bio Carbon Emission from Product | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Bio Carbon Removal from Packaging | kg CO2 | -4.13e+1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Bio Carbon Emission from Packaging | kg CO2 | 7.91e+0 | 0 | 3.34e+1 | 0 | 0 | 0 | 0 | 0 |
| Bio Carbon Emission from Waste during Manufacturing (renewable source) | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Calcination Carbon Removal | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Carbonation Carbon Emission | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Carbon Emission from Waste during Manufacturing (non-renewable source) | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
ND = not declared. Life cycle modules: A1-A3 product stage, A4-A5 construction process, B use stage, C end of life, D benefits and loads beyond the system boundary.
Material composition
| Material/Component Category | Origin | % Mass |
|---|---|---|
| Glazing | UK | 39.8 |
| Profile support | UK | 39.8 |
| Rivet | UK | 0.180 |
| Screws and nuts | UK | 0.830 |
| Sealing | UK, NL | 7.01 |
| Small parts | UK | 1.14 |
| Upstand | UK | 11.3 |
| Packaging material | Origin | Mass (kg) |
|---|---|---|
| Cardboard | 20.14 | |
| Pallet | 0.11 | |
| Plastic cover | 2.42 |
| Biogenic carbon content | kg C per m2 |
|---|---|
| Biogenic carbon content in product | 0 |
| Biogenic carbon content in accompanying packaging | 9.12 |
Hazardous substances
No regulated hazardous or dangerous substances are included in this product.
Scenarios
Transport to the building site (A4)
- Fuel type
- Diesel
- Vehicle type
- Truck and Trailer
- Transport distance
- 1000 km
- Capacity utilization
- 33%
- Weight of products transported
- 137 kg
- Packaging mass
- 22.7 kg
End of life (C1-C4)
- Collected with mixed construction waste
- 114.3 kg
- Recycling
- 65.5 kg
- Landfill
- 34.8 kg
- Incineration
- 14.1 kg
Benefits and loads beyond the system boundary (D)
- Recycling rate of product
- 0.573%
Product description

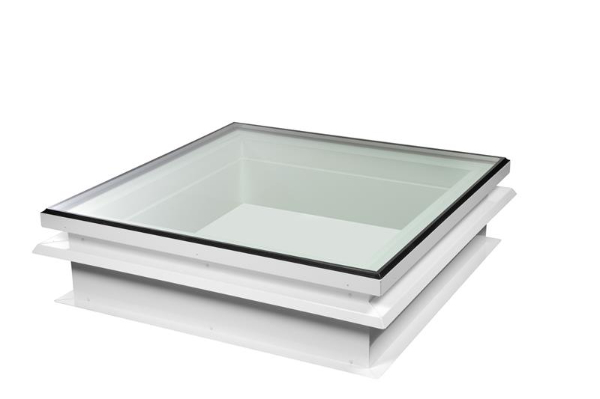

The VELUX Commercial X-AOV and Access Hatch range is a high-performance life-safety solution designed to provide both emergency smoke and heat exhaust ventilation (SHEV) and secure roof access. Fully compliant with EN 12101-2 standards, these units are engineered to open to a $90^\circ$ angle via powerful 24V actuators, ensuring maximum smoke clearance and safe egress during a fire. The range offers exceptional architectural flexibility with three lid variants: flat glass for premium aesthetics and natural light, polycarbonate domes for durable and cost-effective performance, or insulated solid lids for applications where light transmission is not required. Built with thermally broken upstands to minimize heat loss, this versatile system provides a reliable, dual-purpose solution for commercial, residential, and industrial flat roofs.
Interpretation
* The manufacturing of the products in this analysis involves the direct procurement of raw materials from suppliers. These materials are then transported to manufacturing facilities in the EU where they are stored, processed, and combined to produce finished products. Notably, the product stage (stage 1) has the highest impact contribution, mainly attributed to the combined environmental impacts associated with raw material manufacturing and energy used in manufacturing the products.
* For products with significant manufacturing energy impacts, the shift to renewable energy sources is recommended.
* Given that the raw materials used in product manufacturing have a significant impact, exploration of opportunities to substitute these materials with alternatives that have a lower environmental impact. Additionally, consideration should be given to collaborating with suppliers who employ sustainable manufacturing techniques or integrate more renewable energy into their production processes. Such initiatives can lead to more environmentally friendly products and further enhance the sustainability of the products in this analysis.
LCIA results are relative expressions and do not predict impacts on category endpoints, the exceeding of thresholds, safety margins or risks. EPDs are comparable only when they follow the same PCR, functional unit and system boundary. The full EPD (PDF) contains the methodology, scenario assumptions and verification statement.
