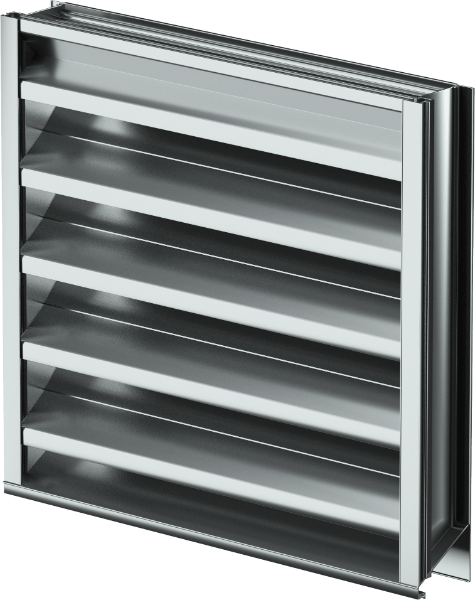

ESJ-401 Non-Drainable Louver

Declaration details

Manufacturer

Greenheck

Program operator

Smart EPD

Declaration number

SmartEPD-2025-049-0271-01.1

Date of issue

February 12, 2025

Valid until

February 12, 2030

Product category rules (PCR)

UL Part B: Insulated Metal Panels, Metal Composite Panels, and Metal Cladding (version 2)

Standard

ISO 14025:2006 and ISO 21930:2017

Functional unit

100 m2 of product coverage of 100 square meters (1076.4 square feet) of building area for 75 years

System boundary

Cradle to grave (A1 - A3, A4, A5, B1 - B7, C1 - C4)

Product specificity

Product Specific

Manufacturing specificity

Facility Specific

Manufacturing plant

Greenheck (Shelby, NC, USA)

Product category

Cladding

Product SKU

ESJ-401

Product service life

75 years

Verifier

Mari Kirss, LCA Support

LCA software

SimaPro 9.6

Program instructions

Smart EPD General Program Instructions v.1.0, November 2022

Life cycle assessment results

Results per 100 m2 of product coverage of 100 square meters (1076.4 square feet) of building area for 75 years.

Environmental Impact Assessment Results

Resource Use Indicators

Waste and Output Flow Indicators

Carbon Emissions and Removals

ND = not declared. Life cycle modules: A1-A3 product stage, A4-A5 construction process, B use stage, C end of life, D benefits and loads beyond the system boundary.

Material composition

Hazardous substances

No regulated hazardous or dangerous substances are included in this product.

Scenarios

Transport to the building site (A4)

Fuel type

Diesel

Transport distance

554 km

Packaging mass

1.01E+03

End of life (C1-C4)

Collected separately

1360 kg

Recycling

1210 kg

Landfill

214 kg

Product or material for final disposal

1360 kg

Product description

Louvers are essential to any successful building. They provide healthy air exchange, while ensuring unwanted elements, like rain, dirt, and animals remain outside. Louvers provide an extra architectural element to a building’s exterior – giving an opportunity to improve the look of any building while meeting mechanical requirements. Louvers include an aluminum body, fasteners, and hardware. Various models may also contain steel, actuators, bearings, seals, and/or insulation. Aluminum is sawed, punched, machined, and welded for the specific project. Once the louver is assembled and welded, it can optionally be sent through the paint line before being packed and shipped to the installation site.

Interpretation

The analysis of Greenheck’s Louver products provides useful insights regarding the cradle-to-grave environmental impacts. The LCA results also identify where substantial impacts are occurring to allow further process and materials improvements to be implemented by the reporting company. The cradle-to-grave impacts for all products are dominated by the A1 Raw Materials Extraction and Processing stage. This stage accounts for 75%-93% of the impacts throughout the products' lifecycle. After this the second largest contributor is the A3 Manufacturing stage. This stage accounts for 6-19% of the lifecycle impacts. The A2 Raw Material Transportation stage accounts for 0.4-3.5% of the impacts, with the other stages accounting for <2%. The trends are similar among the other products assessed. Another key driver of the impacts is the B4 Replacement stage, this is due to the 1.5 replacement products needed to satisfy the 75-year requirement for the functional unit.
