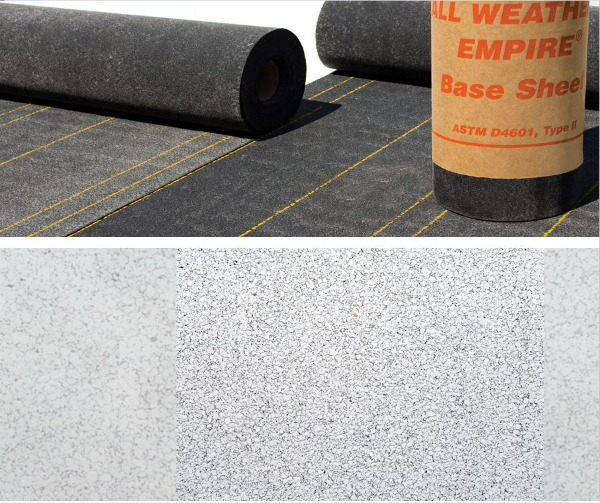

SBS-MODIFIED ASPHALT ROOFING (Hot Asphalt or Cold Adhesive)

Declaration details

Manufacturer

CertainTeed Saint-Gobain

Program operator

Smart EPD

Declaration number

SmartEPD-2025-060-0387-01

Date of issue

April 1, 2025

Valid until

April 1, 2030

Product category rules (PCR)

UL Part B: Asphalt Shingles, Built-up Asphalt and Modified Bituminous Membrane Roofing (version 3)

Standard

ISO 14025:2006 and ISO 21930:2017

Declared unit

1 m2 of product

System boundary

Cradle to gate with other options (A1 - A3, A4, A5, C1 - C4)

Product specificity

Product Average

Manufacturing specificity

Facility Specific

Manufacturing plant

Little Rock (2701 E Roosevelt Rd, Little Rock, AR, USA)

Product category

Cladding › RoofPanels

Verifier

Sarah Curpen

LCA software

Sphera LCA for Experts (formerly GaBi) 10.9

Program instructions

Smart EPD General Program Instructions v.1.0, November 2022

Life cycle assessment results

Results per 1 m2 of product.

Environmental Impact Assessment Results

Resource Use Indicators

Waste and Output Flow Indicators

Carbon Emissions and Removals

ND = not declared. Life cycle modules: A1-A3 product stage, A4-A5 construction process, B use stage, C end of life, D benefits and loads beyond the system boundary.

Material composition

Hazardous substances

No substances required to be reported as hazardous are associated with the production of this product

Scenarios

Transport to the building site (A4)

Fuel type

Diesel

Vehicle type

Standard Freight Trailer

Transport distance

800 km

Capacity utilization

100%

Packaging mass

0.41 kg

End of life (C1-C4)

Collected with mixed construction waste

6.66 kg

Landfill

6.66 kg

Product or material for final disposal

6.66 kg

Product description

Commercial manufactures asphalt-base or bituminous, multi-layer, low-slope, commercial roof systems. Roof systems may consist of one or multiple materials depending on desired performance, warranty, and cost. Roof systems, at minimum include a base sheet and a cap sheets. Most base sheets can also be installed as interply layers . CertainTeed offers over forty roll good products, which equates to hundreds of system configurations and specification options. This EPD is specific to the SBS-Modified Asphalt Commercial Roofing (Hot or Cold Adhesive) products. SBS-Modified Asphalt Commercial Roofing (Hot or Cold Adhesive) products are manufactured with styrene-butadiene-styrene infused asphalt which increases flexibility, especially in low temperatures. Additionally, some products listed as “FR” are manufactured with proprietary additives to increase fire resistance. CertainTeed SBS-modified asphalt roofing systems can be applied by four different application methods: self-adhered, hot asphalt, cold adhesive, or torch-applied. Though hot asphalt and cold adhesive are distinct application methods, the CertainTeed products used for these applications are the same and for the purposes of this study, they are grouped together as one application method.

Reinforcement mats serve as the structure to bituminous low-slope roll goods. The mats are impregnated and coated with SBS-modified asphalt. Products are available with either fiberglass or polyester reinforcement which can vary in thickness and weight. Fiberglass stands up well to heat and tension. Its inherently high melting point affords superior fire resistance when combined with a fire-retardant asphalt formulation. Fiberglass-reinforced products applied in hot asphalt retain excellent dimensional stability. When combined with SBS-modified asphalt, the sheets will resist roof movement until the stress absorbed in the mat forces a break. Polyester’s predominant benefits are puncture resistance and high elongation. Polyester products handle rooftop foot traffic better. They can also cyclically absorb the strain of building movement and return back to their original dimension

Interpretation

Based on the results of the life cycle assessment, the life cycle impacts are strongly driven by the raw materials and installation phases. Within the raw materials, the mats and coatings, and where included, the fire retardant metals, contributed significantly to the environmental impact potentials. Installation methods vary among the products in the study and installation for specific projects varies widely depending on the project, products used, applications, etc. This makes specific installation data difficult to obtain. Due to the variable nature of the installation methods and materials, the results for the installation phase of the life cycle should be considered highly uncertain. The results for individual products within each of the product lines specified in this study vary slightly compared to the averages reported in this EPD, typically due to the coatings and presence of fire retardant metals in the raw material composition.
