Environmental Product Declaration
Key #514-UV Epoxy Coating
Environmental Product Declaration (EPD) for Key #514-UV Epoxy Coating, manufactured by Key Resin Company. Declaration SmartEPD-2026-096-0828-01, prepared according to NSF PCR for Resinous Floor Coatings, valid until April 14, 2031.
- Functional unit
- 1 m2 of product of covered and protected flooring surface for a period of 60 years
- Valid until
- April 14, 2031
- PCR
- NSF PCR for Resinous Floor Coatings
Declaration details
- Manufacturer
- Key Resin Company
- Program operator
- Smart EPD
- Declaration number
- SmartEPD-2026-096-0828-01
- Date of issue
- April 14, 2026
- Valid until
- April 14, 2031
- Product category rules (PCR)
- NSF PCR for Resinous Floor Coatings (version 1e)
- Standard
- ISO 14025:2006 and ISO 21930:2017
- Functional unit
- 1 m2 of product of covered and protected flooring surface for a period of 60 years
- System boundary
- Cradle to grave (A1 - A3, A4, A5, B1 - B7, C1 - C4, D)
- Product specificity
- Product Specific
- Manufacturing specificity
- Manufacturer Average
- Manufacturing plants
- Key Resin Phoenix (4330 N 43rd Ave, Phoenix, AZ 85031, USA); Key Resin, Batavia, OH (4050 Clough Woods Drive, Batavia, OH 45103, USA)
- Product category
- Finishes › Flooring › OtherFlooring
- Product SKU
- Key #514-UV
- Product service life
- 10 years
- Verifier
- Mari Kirss
- LCA software
- SimaPro 10.2
- Program instructions
- Smart EPD General Program Instructions v.2.0, March 2025
Life cycle assessment results
Results per 1 m2 of product of covered and protected flooring surface for a period of 60 years.
Environmental Impact Assessment Results
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GWP-total | kg CO2-eq | 1.73e+0 | 5.73e-2 | 2.38e-1 | 0 | 6.14e+0 | 0 | 1.01e+1 | 0 | 0 | 0 | 0 | 5.80e-3 | 1.22e-1 | 3.41e-1 | -5.31e-1 |
| ODP | kg CFC-11 eq | 3.54e-5 | 9.83e-10 | 7.08e-7 | 0 | 1.85e-7 | 0 | 1.81e-4 | 0 | 0 | 0 | 0 | 9.95e-11 | 8.32e-10 | 9.35e-9 | -1.15e-8 |
| AP | kg SO2 eq | 6.50e-3 | 1.83e-4 | 1.78e-4 | 0 | 2.34e-2 | 0 | 3.43e-2 | 0 | 0 | 0 | 0 | 1.85e-5 | 7.98e-5 | 1.18e-3 | -1.85e-3 |
| EP | kg N eq | 5.11e-3 | 5.05e-5 | 1.50e-4 | 0 | 2.87e-2 | 0 | 2.65e-2 | 0 | 0 | 0 | 0 | 5.11e-6 | 5.16e-5 | 1.18e-3 | -1.75e-3 |
| POCP | kg O3 eq | 8.98e-2 | 4.19e-3 | 3.20e-3 | 0 | 3.24e-1 | 0 | 4.86e-1 | 0 | 0 | 0 | 0 | 4.24e-4 | 1.05e-3 | 1.92e-2 | -2.87e-2 |
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GWP-total | kg CO2-eq | 1.73e+0 | 5.73e-2 | 2.38e-1 | 0 | 6.14e+0 | 0 | 6.07e+0 | 0 | 0 | 0 | 0 | 3.86e-3 | 8.12e-2 | 2.27e-1 | -3.54e-1 |
| ODP | kg CFC-11 eq | 3.54e-5 | 9.83e-10 | 7.08e-7 | 0 | 1.85e-7 | 0 | 1.08e-4 | 0 | 0 | 0 | 0 | 6.63e-11 | 5.55e-10 | 6.23e-9 | -7.69e-9 |
| AP | kg SO2 eq | 6.50e-3 | 1.83e-4 | 1.78e-4 | 0 | 2.34e-2 | 0 | 2.06e-2 | 0 | 0 | 0 | 0 | 1.23e-5 | 5.32e-5 | 7.87e-4 | -1.23e-3 |
| EP | kg N eq | 5.11e-3 | 5.05e-5 | 1.50e-4 | 0 | 2.87e-2 | 0 | 1.59e-2 | 0 | 0 | 0 | 0 | 3.40e-6 | 3.44e-5 | 7.84e-4 | -1.16e-3 |
| POCP | kg O3 eq | 8.98e-2 | 4.19e-3 | 3.20e-3 | 0 | 3.24e-1 | 0 | 2.92e-1 | 0 | 0 | 0 | 0 | 2.83e-4 | 7.00e-4 | 1.28e-2 | -1.92e-2 |
Resource Use Indicators
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RPRE | MJ | 1.74e+0 | 1.05e-2 | 3.67e-2 | 0 | 5.33e+1 | 0 | 8.96e+0 | 0 | 0 | 0 | 0 | 1.07e-3 | 3.20e-3 | 1.33e+0 | -4.45e-1 |
| RPRM | MJ | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| RPRT | MJ | 1.74e+0 | 1.05e-2 | 3.67e-2 | 0 | 5.33e+1 | 0 | 8.96e+0 | 0 | 0 | 0 | 0 | 1.07e-3 | 3.20e-3 | 1.33e+0 | -4.45e-1 |
| NRPRE | MJ | 2.61e+1 | 8.32e-1 | 5.79e-1 | 0 | 8.81e+1 | 0 | 1.37e+2 | 0 | 0 | 0 | 0 | 8.42e-2 | 5.46e-1 | 3.81e+0 | -6.19e+0 |
| NRPRM | MJ | 7.86e+0 | 0 | 1.57e-1 | 0 | 0 | 0 | 4.01e+1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | -2.74e-1 |
| NRPRT | MJ | 4.18e+1 | 8.32e-1 | 8.94e-1 | 0 | 8.81e+1 | 0 | 2.18e+2 | 0 | 0 | 0 | 0 | 8.42e-2 | 5.46e-1 | 3.81e+0 | -6.74e+0 |
| ADPF | MJ | 3.96e+0 | 1.17e-1 | 8.68e-2 | 0 | 1.03e+1 | 0 | 2.08e+1 | 0 | 0 | 0 | 0 | 1.18e-2 | 8.12e-2 | 2.35e-1 | -4.93e-1 |
| FW | m3 | 2.63e-2 | 1.09e-4 | 8.18e-4 | 0 | 1.07e+0 | 0 | 1.36e-1 | 0 | 0 | 0 | 0 | 1.10e-5 | 5.39e-5 | 1.64e-3 | -2.33e-3 |
| RE | MJ | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| NRSF | MJ | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| RSF | MJ | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| SM | kg | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RPRE | MJ | 1.74e+0 | 1.05e-2 | 3.67e-2 | 0 | 5.33e+1 | 0 | 5.38e+0 | 0 | 0 | 0 | 0 | 7.11e-4 | 2.14e-3 | 8.87e-1 | -2.97e-1 |
| RPRM | MJ | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| RPRT | MJ | 1.74e+0 | 1.05e-2 | 3.67e-2 | 0 | 5.33e+1 | 0 | 5.38e+0 | 0 | 0 | 0 | 0 | 7.11e-4 | 2.14e-3 | 8.87e-1 | -2.97e-1 |
| NRPRE | MJ | 2.61e+1 | 8.32e-1 | 5.79e-1 | 0 | 8.81e+1 | 0 | 8.24e+1 | 0 | 0 | 0 | 0 | 5.61e-2 | 3.64e-1 | 2.54e+0 | -4.13e+0 |
| NRPRM | MJ | 7.86e+0 | 0 | 1.57e-1 | 0 | 0 | 0 | 2.41e+1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | -1.83e-1 |
| NRPRT | MJ | 4.18e+1 | 8.32e-1 | 8.94e-1 | 0 | 8.81e+1 | 0 | 1.31e+2 | 0 | 0 | 0 | 0 | 5.61e-2 | 3.64e-1 | 2.54e+0 | -4.49e+0 |
| ADPF | MJ | 3.96e+0 | 1.17e-1 | 8.68e-2 | 0 | 1.03e+1 | 0 | 1.25e+1 | 0 | 0 | 0 | 0 | 7.88e-3 | 5.42e-2 | 1.56e-1 | -3.29e-1 |
| FW | m3 | 2.63e-2 | 1.09e-4 | 8.18e-4 | 0 | 1.07e+0 | 0 | 8.17e-2 | 0 | 0 | 0 | 0 | 7.33e-6 | 3.59e-5 | 1.09e-3 | -1.56e-3 |
| RE | MJ | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| NRSF | MJ | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| RSF | MJ | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| SM | kg | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
Waste and Output Flow Indicators
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HWD | kg | 4.96e-4 | 0 | 9.91e-6 | 0 | 0 | 0 | 2.53e-3 | 0 | 0 | 0 | 0 | 0 | 3.36e-2 | 1.68e+0 | 0 |
| NHWD | kg | 1.20e-2 | 0 | 3.12e-2 | 0 | 0 | 0 | 2.16e-1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| MR | kg | 1.57e-2 | 0 | 2.51e-2 | 0 | 0 | 0 | 2.04e-1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| MER | kg | 3.77e-5 | 0 | 2.76e-3 | 0 | 0 | 0 | 1.40e-2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| ILLRW | m3 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| HLLRW | m3 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| CRU | kg | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| EE | MJ | 1.16e-3 | 0 | 8.49e-2 | 0 | 0 | 0 | 4.30e-1 | 0 | 0 | 0 | 0 | 0 | 1.03e+0 | 0 | 0 |
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HWD | kg | 4.96e-4 | 0 | 9.91e-6 | 0 | 0 | 0 | 1.52e-3 | 0 | 0 | 0 | 0 | 0 | 2.24e-2 | 1.12e+0 | 0 |
| NHWD | kg | 1.20e-2 | 0 | 3.12e-2 | 0 | 0 | 0 | 1.30e-1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| MR | kg | 1.57e-2 | 0 | 2.51e-2 | 0 | 0 | 0 | 1.23e-1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| MER | kg | 3.77e-5 | 0 | 2.76e-3 | 0 | 0 | 0 | 8.38e-3 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| ILLRW | m3 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| HLLRW | m3 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| CRU | kg | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| EE | MJ | 1.16e-3 | 0 | 8.49e-2 | 0 | 0 | 0 | 2.58e-1 | 0 | 0 | 0 | 0 | 0 | 6.90e-1 | 0 | 0 |
Carbon Emissions and Removals
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Bio Carbon Removal from Product | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Bio Carbon Emission from Product | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Bio Carbon Removal from Packaging | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Bio Carbon Emission from Packaging | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Bio Carbon Emission from Waste during Manufacturing (renewable source) | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Calcination Carbon Removal | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Carbonation Carbon Emission | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Carbon Emission from Waste during Manufacturing (non-renewable source) | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Bio Carbon Removal from Product | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Bio Carbon Emission from Product | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Bio Carbon Removal from Packaging | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Bio Carbon Emission from Packaging | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Bio Carbon Emission from Waste during Manufacturing (renewable source) | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Calcination Carbon Removal | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Carbonation Carbon Emission | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Carbon Emission from Waste during Manufacturing (non-renewable source) | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
ND = not declared. Life cycle modules: A1-A3 product stage, A4-A5 construction process, B use stage, C end of life, D benefits and loads beyond the system boundary.
Material composition
| Material/Component Category | Origin | % Mass |
|---|---|---|
| UV absorber | US | < 10 |
| additives | US | < 10 |
| crosslinker | US | < 10 |
| curing agent | US | 26 - 39 |
| diluent | US | < 10 |
| resin-binder | US | 46 - 70 |
| Packaging material | Origin | Mass (kg) |
|---|---|---|
| Plastic pail product | 0.02 | |
| Steel pail packaging | 0.04 |
| Biogenic carbon content | kg C per m2 |
|---|---|
| Biogenic carbon content in product | 0 |
| Biogenic carbon content in accompanying packaging | 0 |
Hazardous substances
Bisphenol A Polyglycidyl Ether Resin (25068-38-6)
Benzyl alcohol (100-51-6)
Petroleum distillates (64742-47-8)
Acrylate Ester (15625-89-5)
Butyl acetate (123-86-4)
Isophoronediamine (2855-13-2 )
Modified cycloaliphatic amine (38294-64-3)
m-Xylenediamine (1477-55-0)
Hydroxybenzoic acid (69-72-7)
Scenarios
Transport to the building site (A4)
- Fuel type
- Diesel
- Vehicle type
- Truck and Trailer
- Transport distance
- 1600 km
- Capacity utilization
- 33%
- Weight of products transported
- 0.3386 kg
- Packaging mass
- 0.05856 kg
End of life (C1-C4)
- Landfill
- 1.68 kg
Product description

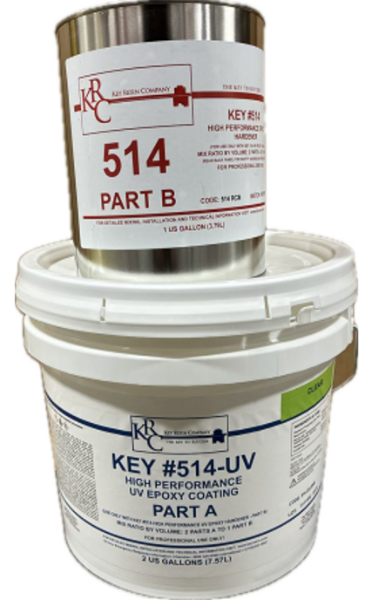

KEY #514-UV is a 100% solids, low viscosity, clear epoxy coating specially formulated for excellent resistance to ultra violet (UV) light exposure. KEY #514-UV provides a wear and abrasion resistant finish that better resists the normal ambering of clear epoxy finishes when exposed to indoor UV spectrum light and other intense lighting. KEY #514-UV is the ideal seal coat for Key Chip Systems, Key Quartz Systems, Key Luster Metallic Systems and numerous other uses. Also used as a binder resin for KeyLuxe System.
Interpretation
Raw materials are sourced from suppliers, transported to manufacturing facilities, and mixed to produce products. The product stage (A1-A3) drives the environmental impact, due to raw material production and energy use. These impacts are amplified in the use phase due to recoatings, making B4 the largest contributor to the overall impact. Market and Technical service life scenarios differ depending on assumed estimated service life (ESL), with lower impacts for longer-lived products. Those scenarios are constructed using PCR prescriptions that are highly conservative, as they assume the replacement of the full coating system. End-of-life impacts are relatively low, as products are assumed to be landfilled with building demolition waste. Switching to renewable energy is advised for products with high manufacturing energy demands. The manufacturer should explore lower-impact raw materials and work with suppliers using sustainable methods or renewable energy to enhance product sustainability.\
LCIA results are relative expressions and do not predict impacts on category endpoints, the exceeding of thresholds, safety margins or risks. EPDs are comparable only when they follow the same PCR, functional unit and system boundary. The full EPD (PDF) contains the methodology, scenario assumptions and verification statement.
