Environmental Product Declaration

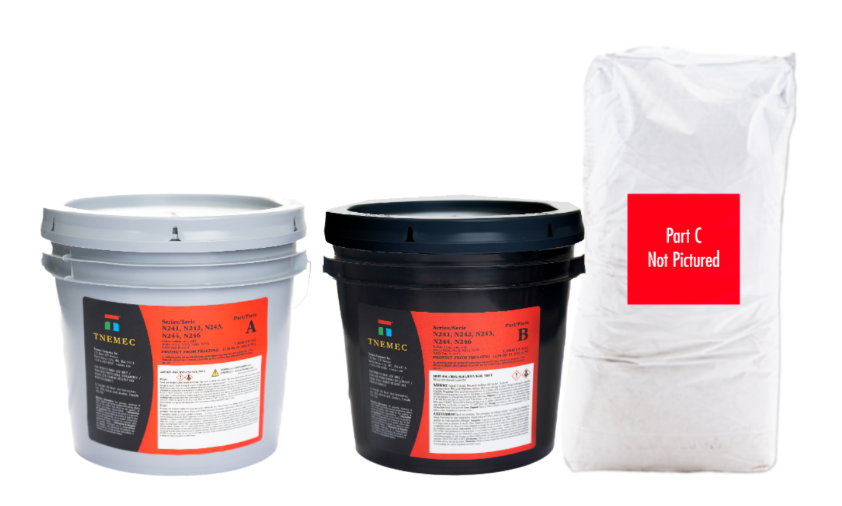

Series N241 Ultra-Tread MVT
by Tnemec
Environmental Product Declaration (EPD) for Series N241 Ultra-Tread MVT, manufactured by Tnemec. Declaration SmartEPD-2026-068-1030-02, prepared according to NSF PCR for Resinous Floor Coatings, valid until September 23, 2031.
- Functional unit
- 1 m2 of product of covered and protected substrate for a period of 60 years
- Valid until
- September 23, 2031
- PCR
- NSF PCR for Resinous Floor Coatings
Declaration details
- Manufacturer
- Tnemec
- Program operator
- Smart EPD
- Declaration number
- SmartEPD-2026-068-1030-02
- Date of issue
- September 23, 2026
- Valid until
- September 23, 2031
- Product category rules (PCR)
- NSF PCR for Resinous Floor Coatings (version 1e)
- Standard
- ISO 14025:2006 and ISO 21930:2017
- Functional unit
- 1 m2 of product of covered and protected substrate for a period of 60 years
- System boundary
- Cradle to grave (A1 - A3, A4, A5, B1 - B7, C1 - C4, D)
- Product specificity
- Product Specific
- Manufacturing specificity
- Facility Specific
- Manufacturing plant
- Tnemec (123 West 23rd Avenue, North Kansas City, Missouri 64116, USA)
- Product category
- Finishes › Flooring › OtherFlooring
- Product SKU
- Series N241 Ultra-Tread MVT
- Product service life
- 10 years
- Verifier
- Mari Kirss
- LCA software
- SimaPro 10.2
- Program instructions
- Smart EPD General Program Instructions v.2.0, March 2025
Life cycle assessment results
Results per 1 m2 of product of covered and protected substrate for a period of 60 years.
Environmental Impact Assessment Results
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GWP-total | kg CO2-eq | 7.63e+0 | 2.41e-1 | 4.39e-1 | 0 | 6.14e+0 | 0 | 4.16e+1 | 0 | 0 | 0 | 0 | 4.39e-2 | 9.28e-1 | 2.59e+0 | -2.85e+0 |
| ODP | kg CFC-11 eq | 1.85e-4 | 4.14e-9 | 3.70e-6 | 0 | 1.85e-7 | 0 | 9.45e-4 | 0 | 0 | 0 | 0 | 7.54e-10 | 6.34e-9 | 7.08e-8 | -2.49e-8 |
| AP | kg SO2 eq | 3.54e-2 | 7.69e-4 | 7.85e-4 | 0 | 2.34e-2 | 0 | 1.85e-1 | 0 | 0 | 0 | 0 | 1.40e-4 | 6.08e-4 | 8.94e-3 | -6.28e-3 |
| EP | kg N eq | 2.33e-2 | 2.12e-4 | 5.35e-4 | 0 | 2.87e-2 | 0 | 1.20e-1 | 0 | 0 | 0 | 0 | 3.87e-5 | 3.93e-4 | 8.92e-3 | -3.74e-3 |
| POCP | kg O3 eq | 4.37e-1 | 1.76e-2 | 1.09e-2 | 0 | 3.24e-1 | 0 | 2.33e+0 | 0 | 0 | 0 | 0 | 3.21e-3 | 8.00e-3 | 1.45e-1 | -1.45e-1 |
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GWP-total | kg CO2-eq | 7.63e+0 | 2.41e-1 | 4.39e-1 | 0 | 6.14e+0 | 0 | 2.49e+1 | 0 | 0 | 0 | 0 | 2.93e-2 | 6.18e-1 | 1.72e+0 | -1.90e+0 |
| ODP | kg CFC-11 eq | 1.85e-4 | 4.14e-9 | 3.70e-6 | 0 | 1.85e-7 | 0 | 5.67e-4 | 0 | 0 | 0 | 0 | 5.03e-10 | 4.23e-9 | 4.72e-8 | -1.66e-8 |
| AP | kg SO2 eq | 3.54e-2 | 7.69e-4 | 7.85e-4 | 0 | 2.34e-2 | 0 | 1.11e-1 | 0 | 0 | 0 | 0 | 9.35e-5 | 4.05e-4 | 5.96e-3 | -4.19e-3 |
| EP | kg N eq | 2.33e-2 | 2.12e-4 | 5.35e-4 | 0 | 2.87e-2 | 0 | 7.21e-2 | 0 | 0 | 0 | 0 | 2.58e-5 | 2.62e-4 | 5.95e-3 | -2.49e-3 |
| POCP | kg O3 eq | 4.37e-1 | 1.76e-2 | 1.09e-2 | 0 | 3.24e-1 | 0 | 1.40e+0 | 0 | 0 | 0 | 0 | 2.14e-3 | 5.33e-3 | 9.69e-2 | -9.65e-2 |
Resource Use Indicators
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RPRE | MJ | 1.07e+1 | 4.44e-2 | 2.16e-1 | 0 | 5.33e+1 | 0 | 5.46e+1 | 0 | 0 | 0 | 0 | 8.09e-3 | 2.44e-2 | 1.01e+1 | -8.21e-1 |
| RPRM | MJ | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| RPRT | MJ | 1.07e+1 | 4.44e-2 | 2.16e-1 | 0 | 5.33e+1 | 0 | 5.46e+1 | 0 | 0 | 0 | 0 | 8.09e-3 | 2.44e-2 | 1.01e+1 | -8.21e-1 |
| NRPRE | MJ | 1.20e+2 | 3.50e+0 | 2.54e+0 | 0 | 8.81e+1 | 0 | 6.32e+2 | 0 | 0 | 0 | 0 | 6.38e-1 | 4.16e+0 | 2.89e+1 | -4.23e+1 |
| NRPRM | MJ | 2.84e-1 | 0 | 5.67e-3 | 0 | 0 | 0 | 1.45e+0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| NRPRT | MJ | 1.21e+2 | 3.50e+0 | 2.55e+0 | 0 | 8.81e+1 | 0 | 6.35e+2 | 0 | 0 | 0 | 0 | 6.38e-1 | 4.16e+0 | 2.89e+1 | -4.23e+1 |
| ADPF | MJ | 1.42e+1 | 4.92e-1 | 3.01e-1 | 0 | 1.03e+1 | 0 | 7.48e+1 | 0 | 0 | 0 | 0 | 8.96e-2 | 6.19e-1 | 1.78e+0 | -5.55e+0 |
| FW | m3 | 9.02e-2 | 4.58e-4 | 2.22e-3 | 0 | 1.07e+0 | 0 | 4.64e-1 | 0 | 0 | 0 | 0 | 8.34e-5 | 4.11e-4 | 1.24e-2 | -5.30e-3 |
| RE | MJ | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| NRSF | MJ | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| RSF | MJ | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| SM | kg | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RPRE | MJ | 1.07e+1 | 4.44e-2 | 2.16e-1 | 0 | 5.33e+1 | 0 | 3.28e+1 | 0 | 0 | 0 | 0 | 5.39e-3 | 1.63e-2 | 6.72e+0 | -5.48e-1 |
| RPRM | MJ | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| RPRT | MJ | 1.07e+1 | 4.44e-2 | 2.16e-1 | 0 | 5.33e+1 | 0 | 3.28e+1 | 0 | 0 | 0 | 0 | 5.39e-3 | 1.63e-2 | 6.72e+0 | -5.48e-1 |
| NRPRE | MJ | 1.20e+2 | 3.50e+0 | 2.54e+0 | 0 | 8.81e+1 | 0 | 3.79e+2 | 0 | 0 | 0 | 0 | 4.25e-1 | 2.77e+0 | 1.93e+1 | -2.82e+1 |
| NRPRM | MJ | 2.84e-1 | 0 | 5.67e-3 | 0 | 0 | 0 | 8.68e-1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| NRPRT | MJ | 1.21e+2 | 3.50e+0 | 2.55e+0 | 0 | 8.81e+1 | 0 | 3.81e+2 | 0 | 0 | 0 | 0 | 4.25e-1 | 2.77e+0 | 1.93e+1 | -2.82e+1 |
| ADPF | MJ | 1.42e+1 | 4.92e-1 | 3.01e-1 | 0 | 1.03e+1 | 0 | 4.49e+1 | 0 | 0 | 0 | 0 | 5.98e-2 | 4.13e-1 | 1.19e+0 | -3.70e+0 |
| FW | m3 | 9.02e-2 | 4.58e-4 | 2.22e-3 | 0 | 1.07e+0 | 0 | 2.79e-1 | 0 | 0 | 0 | 0 | 5.56e-5 | 2.74e-4 | 8.29e-3 | -3.54e-3 |
| RE | MJ | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| NRSF | MJ | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| RSF | MJ | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| SM | kg | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
Waste and Output Flow Indicators
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HWD | kg | 4.27e-2 | 0 | 8.53e-4 | 0 | 0 | 0 | 2.18e-1 | 0 | 0 | 0 | 0 | 0 | 2.56e-1 | 1.27e+1 | 0 |
| NHWD | kg | 6.88e-2 | 0 | 3.09e-2 | 0 | 0 | 0 | 4.99e-1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| MR | kg | 5.51e-2 | 0 | 1.10e-3 | 0 | 0 | 0 | 2.81e-1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| MER | kg | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| ILLRW | m3 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| HLRW | m3 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| CRU | kg | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| EE | MJ | 3.35e+0 | 0 | 3.70e+0 | 0 | 0 | 0 | 3.53e+1 | 0 | 0 | 0 | 0 | 0 | 4.70e+0 | 0 | 0 |
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HWD | kg | 4.27e-2 | 0 | 8.53e-4 | 0 | 0 | 0 | 1.31e-1 | 0 | 0 | 0 | 0 | 0 | 1.71e-1 | 8.49e+0 | 0 |
| NHWD | kg | 6.88e-2 | 0 | 3.09e-2 | 0 | 0 | 0 | 2.99e-1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| MR | kg | 5.51e-2 | 0 | 1.10e-3 | 0 | 0 | 0 | 1.69e-1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| MER | kg | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| ILLRW | m3 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| HLRW | m3 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| CRU | kg | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| EE | MJ | 3.35e+0 | 0 | 3.70e+0 | 0 | 0 | 0 | 2.12e+1 | 0 | 0 | 0 | 0 | 0 | 3.14e+0 | 0 | 0 |
Carbon Emissions and Removals
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Bio Carbon Removal from Product | kg CO2 | -2.58e-1 | 0 | -5.06e-3 | 0 | 0 | 0 | -1.29e+0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Bio Carbon Emission from Product | kg CO2 | 5.06e-3 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 3.04e-2 | 1.52e+0 | 0 |
| Bio Carbon Removal from Packaging | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Bio Carbon Emission from Packaging | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Bio Carbon Emission from Waste during Manufacturing (renewable source) | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Calcination Carbon Removal | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Carbonation Carbon Emission | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Carbon Emission from Waste during Manufacturing (non-renewable source) | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Bio Carbon Removal from Product | kg CO2 | -2.58e-1 | 0 | -5.06e-3 | 0 | 0 | 0 | -7.74e-1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Bio Carbon Emission from Product | kg CO2 | 5.06e-3 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 2.02e-2 | 1.01e+0 | 0 |
| Bio Carbon Removal from Packaging | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Bio Carbon Emission from Packaging | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Bio Carbon Emission from Waste during Manufacturing (renewable source) | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Calcination Carbon Removal | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Carbonation Carbon Emission | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Carbon Emission from Waste during Manufacturing (non-renewable source) | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
ND = not declared. Life cycle modules: A1-A3 product stage, A4-A5 construction process, B use stage, C end of life, D benefits and loads beyond the system boundary.
Material composition
| Material/Component Category | Origin | % Mass |
|---|---|---|
| Additive | US | < 10 |
| Pigment | US | 44 - 66 |
| Resin | US | 24 - 37 |
| Solvent | US | < 10 |
| Packaging material | Origin | Mass (kg) |
|---|---|---|
| Plastic hdpe | US | 0.15 |
Hazardous substances
Glycerin (56-81-5)
Distillates, petroleum, hydrotreated middle (64742-46-7)
3-Iodo-2-propynyl butyl carbamate (55406-53-6)
Ethanol, 2-((2-aminoethyl)amino)-, polymer with methyloxirane (+031568-06-06T07:00:00.000Z)
Petroleum solvent (naphtha) (64742-95-6)
Diphenylmethane diisocyanate (MDI) polymer (9016-87-9)
Diphenylmethane diisocyanate (volatile monomer) (101-68-8)
2,2'-Diphenylmethane diisocyanate (2536-05-2)
Scenarios
Transport to the building site (A4)
- Fuel type
- Diesel
- Vehicle type
- Truck and Trailer
- Transport distance
- 1.00e+03
- Capacity utilization
- 33%
- Weight of products transported
- 2.28e+00
- Packaging mass
- 1.48e-01
End of life (C1-C4)
- Collected separately
- 2.56e-01
- Collected with mixed construction waste
- 1.27e+01
- Landfill
- 1.27e+01
- Incineration
- 2.56e-01
Benefits and loads beyond the system boundary (D)
- Net energy benefit from energy recovery in C3, declared as exported energy
- 5 MJ
Product description
Ultra-Tread MVT is a low odor, slurry applied, high performance moisture control base layer designed to reduce moisture vapor emissions prior to the application of non-breathing, polymer floor topping finishes. Ultra-Tread MVT is a selfpriming base coat that can be applied to 10 day old concrete. It can withstand moisture vapor transmission up to 20 lbs (per ASTM F 1869) and relative humidity up to 99% (per ASTM F 2170). Note: Series N241 must be broadcast to refusal with aggregate, color quartz, or decorative flake within 15 to 20 minutes of application. Color quartz and/or decorative flake systems will require an additional broadcast layer using non-pigmented Series N222, N222FC, N224, 256, 257, or 286 to obtain a uniform appearance and texture before applying the desired clear finish coats. This will typically result in a total system thickness of approximately 1/8".
Interpretation
Raw materials are sourced from suppliers, transported to manufacturing facilities, and mixed to produce products. The product stage (A1-A3) drives the environmental impact, due to raw material production and energy use. This impacts is amplified in the use phase due to recoatings, making B4 the largest contributor to the overall impact. Market and Technical service life scenarios differ depending on assumed estimated service life (ESL), with lower impacts for longer-lived products. Those scenarios are constructed using PCR prescriptions that are highly conservative, as they assumed the replacemnt of the full coating sytem. End-of-life impacts are relatively low, as products are assumed to be landfilled with building demolition waste. Switching to renewable energy is advised for products with high manufacturing energy demands. The manufacturer should explore lower-impact raw materials and work with suppliers using sustainable methods or renewable energy to enhance product sustainability.
LCIA results are relative expressions and do not predict impacts on category endpoints, the exceeding of thresholds, safety margins or risks. EPDs are comparable only when they follow the same PCR, functional unit and system boundary. The full EPD (PDF) contains the methodology, scenario assumptions and verification statement.
