Environmental Product Declaration

KI Tattoo Screens

Environmental Product Declaration (EPD) for KI Tattoo Screens, manufactured by Krueger International. Declaration SmartEPD-2026-124-0794-01, prepared according to NSF BIFMA PCR for Office Furniture Workspace Products: UNCPC 3814, v.2, valid until March 27, 2031.

Download the EPD (PDF)

Functional unit: 1 m2 of workspace for a 10-year period of product
Valid until: March 27, 2031
PCR: Office Furniture Workspace Products

Declaration details

Manufacturer: Krueger International
Program operator: Smart EPD
Declaration number: SmartEPD-2026-124-0794-01
Date of issue: March 27, 2026
Valid until: March 27, 2031
Product category rules (PCR): NSF BIFMA PCR for Office Furniture Workspace Products: UNCPC 3814, v.2 (version 2)
Standard: ISO 21930:2017
Functional unit: 1 m2 of workspace for a 10-year period of product
System boundary: Cradle to gate with other options (A1 - A3, A4, B1, B4, C1 - C4)
Product specificity: Product Specific
Manufacturing specificity: Facility Specific
Manufacturing plant: KI - Manitowoc Manufacturing Facility (1400 South 41st Street, Manitowoc, WI, USA)
Product category: Furnishings › WorkSurfaces
Product SKU: Tattoo Screen: TFME4842/FFLB/F/SX
Verifier: Vijay Thakur, Individual Verifier
LCA software: Earthster 1.7
Program instructions: Smart EPD General Program Instructions v.2.0, March 2025

Life cycle assessment results

Results per 1 m2 of workspace for a 10-year period of product.

Environmental Impact Assessment Results

Indicator	Unit	A1-A3	A4	C2	C3	C4	Total
GWP-total	kg CO2 eq	5.85e+1	3.74e+0	9.78e-2	2.80e-1	1.43e-1	6.28e+1
GWP-biogenic	kg CO2 eq	1.87e-1	8.34e-4	2.18e-5	5.08e-5	5.42e-2	2.42e-1
ODP	kg CFC 11 eq	5.24e-7	5.36e-8	1.40e-9	7.53e-10	1.61e-9	5.81e-7
AP	kg SO2 eq	2.19e-1	1.15e-2	3.01e-4	2.33e-4	3.41e-4	2.31e-1
EP	kg N eq	1.81e-1	5.79e-3	1.51e-4	3.13e-4	2.07e-2	2.08e-1
POCP	kg O3 eq	4.29e+0	2.80e-1	7.32e-3	6.59e-3	9.78e-3	4.59e+0

Resource Use Indicators

Indicator	Unit	A1-A3	A4	C2	C3	C4	Total
RPRE	MJ	5.25e+1	7.20e-1	1.88e-2	1.30e-2	1.27e-2	5.33e+1
RPRM	MJ	3.32e+0	0	0	0	0	3.32e+0
RPRT	MJ	5.58e+0	7.20e-1	1.88e-2	1.30e-2	1.27e-2	6.34e+0
NRPRE	MJ	7.80e+2	5.15e-1	1.35e+0	6.04e-1	1.28e+0	7.84e+2
NRPRM	MJ	1.33e+1	0	0	0	0	1.33e+1
NRPRT	MJ	7.93e+2	5.15e+1	1.35e+0	6.04e-1	1.28e+0	8.48e+2
RE	MJ	0	0	0	2.01e+0	0	2.01e+0
FW	m3	3.77e-1	6.89e-3	1.80e-4	6.58e-4	-6.05e-4	3.84e-1
SM	kg	7.54e+0	0	0	0	0	7.54e+0

ND = not declared. Life cycle modules: A1-A3 product stage, A4-A5 construction process, B use stage, C end of life, D benefits and loads beyond the system boundary.

Material composition

Product composition
Material/Component Category	Origin	Material weight (kg)	Mass % of product	Post consumer %	Post consumer weight (kg)	Pre-consumer %	Pre-consumer weight (kg)
Steel	Chicago, IL	0.187	1.26%	46.2%	0.086	31.1%	0.058
Polypropylene	Chicago, IL	0.005	0.04%	0%	0	0%	0
PVC	Plymouth, WI	0.08	0.56%	0%	0	0%	0
Steel	St. Constant, QC Canada	4.33	29.21%	0%	0	100%	4.33
PET (Laminite)	St. Constant, QC Canada	0.48	3.25%	0%	0	0%	0
Steel	Alexandria, MN	6.71	45.33%	46.2%	3.10	31.1%	2.09
Aluminum	Alexandria, MN	1.39	9.36%	60%	0.83	10%	0.14
Steel	China	1.63	11.00%	46.2%	0.75	31.1%	0.51

Packaging
Packaging material	Origin	Mass (kg)
Cardboard	Chicago, IL	0.21
Plastic	Chicago, IL	0.02

Biogenic carbon
Biogenic carbon content	kg C per m2 of workspace for a 10-year period
Biogenic carbon content in product	0
Biogenic carbon content in accompanying packaging	0.105

Hazardous substances

No regulated hazardous or dangerous substances are included in this product.

Scenarios

Transport to the building site (A4)

Fuel type: Diesel
Vehicle type: Truck - Heavy-duty Diesel
Transport distance: 1250 km
Capacity utilization: 78%
Weight of products transported: 7,605
Packaging mass: 15.04 kg

End of life (C1-C4)

Collected with mixed construction waste: 14.81 kg
Recycling: 4.935 kg
Landfill: 8.09 kg
Incineration: 2.014 kg

Product description

For the product family below, a representative product was chosen for this study based on material type and amount utilized per functional unit. Specifically, models with additional features were chosen and when several materials options were available (i.e. wood vs plastic vs metal vs textile), the material with the highest global warming potential was chosen to be a conservative estimate due to the market demand for embodied carbon data. Because sizing can also vary, it was determined that on a functional unit basis and combined with the feature and material choices, these models were deemed worst-case scenario. Actual material content and features can vary.

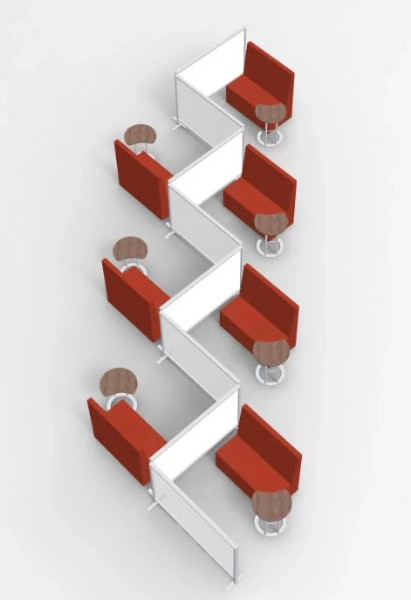

Tattoo Screens offers flex and spine screens, allowing workstation flexibility for focused work or collaboration. Diverse screen inserts are available for improved aesthetics, acoustics, and functionality. Flex screens are easy to move, so you can expand or contract workspaces for either individual focus or team interaction. The representative product (TFME4842/FFLB/F/SX) is a monolithic flex screen with a magnetic dry- erasable steel core with a non-adjustable flat/bridge foot.

Interpretation

A dominance analysis was conducted across all products in the LCA to identify which life cycle stages contributed most significantly to environmental impacts. For KI's Tattoo Screen, the majority of the impacts were concentrated in the production phase (A1-A3), which encompasses material acquisition and raw material pre-processing. A further breakdown within this phase revealed that steel and aluminum materials were the primary contributors to these impacts - largely due to the substantial quantity of steel used and its relatively high environmental footprint per kilogram compared to other materials.

LCIA results are relative expressions and do not predict impacts on category endpoints, the exceeding of thresholds, safety margins or risks. EPDs are comparable only when they follow the same PCR, functional unit and system boundary. The full EPD (PDF) contains the methodology, scenario assumptions and verification statement.
