Environmental Product Declaration

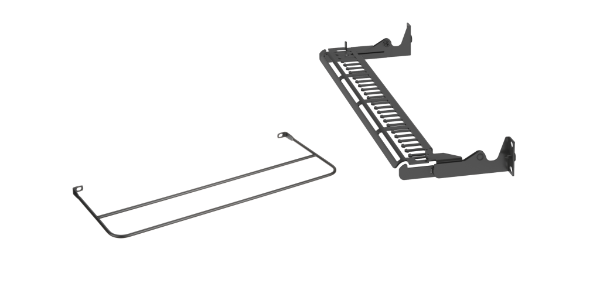

Strain Relief Bars

Environmental Product Declaration (EPD) for Strain Relief Bars, manufactured by Panduit Corporation. Declaration SmartEPD-2026-127-0831-01, prepared according to PEP ecopassport® PROGRAM PCR Product Category Rules for Electrical, Electronic and HVAC-R Products (PCR-ed4-EN-2021 09 06), valid until April 17, 2031.

Download the EPD (PDF)

Functional unit: 1 unit of product
Valid until: April 17, 2031
PCR: PEP PCR Electrical, Electronic and HVAC-R Products

Declaration details

Manufacturer: Panduit Corporation
Program operator: Smart EPD
Declaration number: SmartEPD-2026-127-0831-01
Date of issue: April 17, 2026
Valid until: April 17, 2031
Product category rules (PCR): PEP ecopassport® PROGRAM PCR Product Category Rules for Electrical, Electronic and HVAC-R Products (PCR-ed4-EN-2021 09 06) (version 4)
Standard: ISO 14025:2006 and EN 50693:2019
Functional unit: 1 unit of product
System boundary: Cradle to grave (A1 - A3, A4, A5, B1 - B7, C1 - C4, D)
Product specificity: Product Average
Manufacturing specificity: Facility Specific
Manufacturing plants: North America (North America); Asia (Asia)
Product category: NetworkInfrastructure › CabinetsRacksAndEnclosures
Product SKU: This EPD presents the impacts of SRB19D5BL as the baseline product, but this EPD is representative of the products listed in the Product Description section.
Product service life: 20 years
Verifier: Arka Pandit
LCA software: Sphera LCA for Experts (formerly GaBi) 10.9
Program instructions: Smart EPD General Program Instructions v.2.0, March 2025

Life cycle assessment results

Results per 1 unit of product.

Environmental Impact Assessment Results

Indicator	Unit	A1-A3	A4	A5	C2	C4	D
GWP-total (excl biogenic)	kg CO2 eq	6.79e-1	7.99e-2	3.93e-2	1.40e-2	8.12e-4	-5.76e-2
ODP	kg CFC 11 eq	7.94e-10	2.37e-12	3.98e-11	1.92e-15	2.52e-15	-6.71e-14
AP	kg SO2 eq	1.33e-3	5.48e-4	1.17e-3	9.99e-5	2.13e-6	-5.55e-5
EP-freshwater	kg P eq	7.01e-7	9.28e-10	3.57e-8	7.90e-10	3.72e-10	-9.03e-9
EP-marine	kg N eq	5.48e-4	1.44e-3	1.48e-4	1.11e-4	4.26e-6	-1.14e-4
PM	kg PM2.5 eq	2.75e-4	3.06e-5	1.57e-5	3.31e-6	3.30e-7	-1.45e-5
ODP	kg CFC-11 eq	7.28e-10	2.37e-12	3.65e-11	1.92e-15	2.52e-15	-6.71e-14
AP	kg SO2 eq	1.32e-3	1.15e-3	1.31e-4	8.32e-5	4.02e-6	-1.08e-4
EP	kg PO4 eq	1.33e-4	2.25e-4	1.93e-5	1.92e-5	1.00e-6	-1.03e-5
POCP	kg C2H4 eq	2.35e-4	4.65e-5	1.24e-5	-3.40e-5	3.16e-7	-1.60e-5
ADP-fossil	MJ	8.18e+0	1.02e+0	4.78e-1	1.91e-1	1.21e-2	-4.57e-1
ADP-minerals&metals	kg Sb eq	2.99e-6	6.17e-10	1.50e-7	5.03e-10	3.03e-10	1.79e-9
GWP- total	kg CO2 eq	6.42e-1	8.04e-2	3.75e-2	1.42e-2	8.25e-4	-5.77e-2
GWP- fossil	kg CO2 eq	6.88e-1	8.04e-2	3.97e-2	1.42e-2	8.26e-4	-5.77e-2
GWP-biogenic	kg CO2 eq	-4.55e-2	4.37e-6	-2.28e-3	3.73e-6	-1.09e-6	1.32e-5
GWP-luluc	kg CO2 eq	1.75e-4	8.61e-7	1.19e-5	7.33e-7	7.05e-7	-2.78e-5
ODP	kg CFC11 eq	5.58e-10	1.63e-12	2.80e-11	1.56e-15	2.13e-15	-2.92e-14
AP	mol H+ eq	1.58e-3	1.59e-3	1.69e-4	1.20e-4	4.93e-6	-1.32e-4
PM	disease incidence	5.11e-8	5.65e-9	2.93e-9	8.68e-10	5.63e-11	-1.95e-9
IRP	kBq U235 eq	3.81e-2	6.08e-6	1.92e-3	5.18e-6	1.27e-5	7.62e-4
POCP	kg NMVOC eq	1.16e-3	1.75e-3	1.55e-4	1.09e-4	3.75e-6	-1.07e-4
EP-fw	kg P eq	1.47e-6	2.00e-8	7.59e-8	1.73e-9	8.24e-10	-2.00e-8
EP-marine	kg N eq	3.35e-4	6.67e-4	5.44e-5	5.70e-5	1.65e-6	-3.18e-5
EP-terrestrial	mol N eq	3.45e-3	7.30e-3	5.84e-4	6.25e-4	1.34e-5	-3.42e-4
SQI	dimensionless	9.43e-1	4.34e-4	4.91e-2	3.69e-4	9.89e-4	3.58e-2
WDP	m3 world eq deprived	1.66e-1	6.57e-5	8.38e-3	5.59e-5	3.83e-5	-3.94e-4
ADP-fossil	MJ, net calorific value	9.41e+0	1.03e+0	5.40e-1	1.91e-1	1.24e-2	-4.37e-1
ADP-minerals&metals	kg Sb eq	2.64e-6	2.43e-10	1.32e-7	2.07e-10	9.60e-11	-5.66e-10
ETP-fwio	CTUe	1.10e+0	1.43e+0	1.44e-1	2.27e-1	9.19e-3	-6.72e-2
HTP-co	CTUh	1.95e-10	2.10e-11	1.11e-11	3.42e-12	2.83e-13	-9.20e-11
HTP-nco	CTUh	2.04e-9	1.22e-9	1.69e-10	5.15e-11	3.55e-12	7.06e-11

Resource Use Indicators

Indicator	Unit	A1-A3	A4	A5	C2	C4	D
PERE	MJ	1.00e+0	1.12e-3	5.15e-2	9.57e-4	1.78e-3	6.93e-2
PERM	MJ	2.42e-1	0	0	0	0	0
PERT	MJ	1.00e+0	1.12e-3	5.15e-2	9.57e-4	1.78e-3	6.93e-2
PENRE	MJ	9.41e+0	1.03e+0	5.40e-1	1.91e-1	1.24e-2	-4.37e-1
PENRM	MJ	2.46e-1	0	0	0	0	0
PENRT	MJ	9.41e+0	1.03e+0	5.40e-1	1.91e-1	1.24e-2	-4.37e-1
RPRE	MJ	1.00e+0	1.12e-3	5.15e-2	9.57e-4	1.78e-3	6.93e-2
RPRM	MJ	2.42e-1	0	0	0	0	0
RPRT	MJ	1.24e+0	1.12e-3	5.15e-2	9.57e-4	1.78e-3	6.93e-2
NRPRE	MJ	9.41e+0	1.03e+0	5.40e-1	1.91e-1	1.24e-2	-4.37e-1
NRPRM	MJ	2.46e-1	0	0	0	0	0
NRPRT	MJ	9.65e+0	1.03e+0	5.40e-1	1.91e-1	1.24e-2	-4.37e-1
SM	kg	0	0	0	0	0	0
RSF	MJ	0	0	0	0	0	0
NRSF	MJ	0	0	0	0	0	0
FW	m3	1.00e-1	1.73e-6	5.01e-3	1.47e-6	1.42e-6	-3.33e-5
RE	MJ	0	0	0	0	0	0

Waste and Output Flow Indicators

Indicator	Unit	A1-A3	A4	A5	C2	C4	D
HWD	kg	5.77e-10	4.61e-12	3.10e-11	3.93e-12	2.98e-12	1.64e-10
NHWD	kg	9.01e-3	7.66e-6	3.54e-2	6.52e-6	3.80e-2	6.32e-3
RWD	kg	4.11e-4	8.81e-8	2.07e-5	7.50e-8	1.37e-7	7.30e-6
CRU	kg	0	0	0	0	0	0
MFR	kg	0	0	0	0	0	1.45e-1
MER	kg	0	0	0	0	0	0
MNER	kg	0	0	0	0	0	0
EEE	MJ	0	0	0	0	0	0
EET	MJ	0	0	0	0	0	0

Carbon Emissions and Removals

Indicator	Unit	A1-A3	A4
BCRP	kg CO2	0	0
BCEP	kg CO2	0	0
BCRK	kg CO2	1.18e-2	0
BCEK	kg CO2	0	1.18e-2
BCEW	kg CO2	0	0
CCE	kg CO2	0	0
CCR	kg CO2	0	0
CWNR	kg CO2	0	0

ND = not declared. Life cycle modules: A1-A3 product stage, A4-A5 construction process, B use stage, C end of life, D benefits and loads beyond the system boundary.

Material composition

Product composition
Material/Component Category	Origin	% Mass
Steel		98.75
Zinc		1.25

Packaging
Packaging material	Origin	Mass (kg)
Adhesive Tape		0.00077
Cardboard		0.0081
Nylon Strapping		0.000752
Paper		0.000331
Styrofoam		0.000727
Wood		0.0151

Biogenic carbon
Biogenic carbon content	kg C per unit
Biogenic carbon content in accompanying packaging	0.00321

Hazardous substances

No regulated hazardous or dangerous substances are included in this product.

Scenarios

Transport to the building site (A4)

Fuel type: Diesel

End of life (C1-C4)

Recycling: 1.45E-01
Product or material for final disposal: 3.68E-02

Product description

This EPD presents includes the following products:

Strain Relief Bar: Part Number SRB19D5BL

Strain Relief Bar: Part Number SRB19D7BL

Strain Relief Bar: Part Number SRB19MDBL

Pivoting Strain Relief Bar: Part Number SRBPBL

Interpretation

When evaluating the TRACI 2.2 impact categories specifically for the represented product, the production (A1-A3) stage is the primary driver of impacts of global warming potential, ozone depletion, and freshwater eutrophication primarily due to steel and zinc components in the product’s composition. The product distribution phase is the driver of acidification, marine eutrophication, and photochemical oxidation formation due to fuel combustion air emissions during transportation.

LCIA results are relative expressions and do not predict impacts on category endpoints, the exceeding of thresholds, safety margins or risks. EPDs are comparable only when they follow the same PCR, functional unit and system boundary. The full EPD (PDF) contains the methodology, scenario assumptions and verification statement.
