Environmental Product Declaration

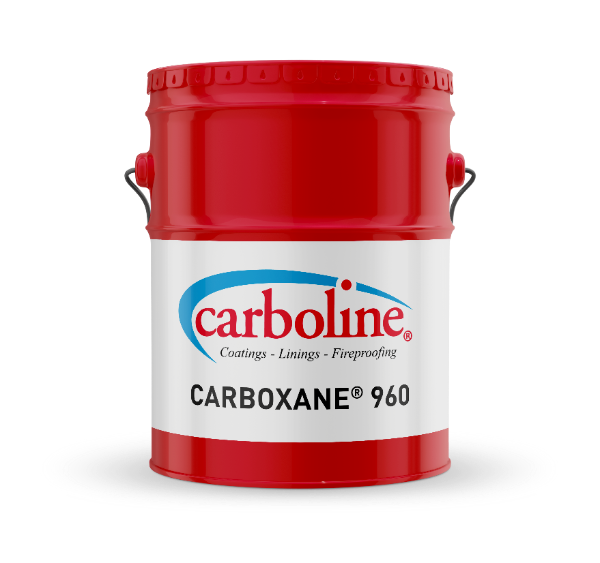

Carboxane® 960
by Carboline
Environmental Product Declaration (EPD) for Carboxane® 960, manufactured by Carboline. Declaration SmartEPD-2026-148-0972-01, prepared according to NSF PCR for Architectural Coatings, valid until June 29, 2031.
- Functional unit
- 1 m2 of product of covered and protected substrate for a period of 60 years
- Valid until
- June 29, 2031
- PCR
- NSF PCR for Architectural Coatings
Declaration details
- Manufacturer
- Carboline
- Program operator
- Smart EPD
- Declaration number
- SmartEPD-2026-148-0972-01
- Date of issue
- June 29, 2026
- Valid until
- June 29, 2031
- Product category rules (PCR)
- NSF PCR for Architectural Coatings (version 1)
- Standard
- ISO 14025:2006 and ISO 21930:2007
- Functional unit
- 1 m2 of product of covered and protected substrate for a period of 60 years
- System boundary
- Cradle to grave (A1 - A3, A4, A5, B1 - B7, C1 - C4)
- Product specificity
- Product Specific
- Manufacturing specificity
- Facility Specific
- Manufacturing plant
- Carboline - Green Bay, WI (2122 Angie Ave, Green Bay, WI 54302, USA)
- Product category
- Finishes › PaintingAndCoating
- Product SKU
- Carboxane® 960
- Product service life
- 5 years
- Verifier
- Amy Landis, Michigan Technological University
- LCA software
- SimaPro 10.2
- Program instructions
- Smart EPD General Program Instructions v.2.0, March 2025
Life cycle assessment results
Results per 1 m2 of product of covered and protected substrate for a period of 60 years.
Environmental Impact Assessment Results
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GWP-total | kg CO2-eq | 1.74e-1 | 2.11e-2 | 1.96e-2 | 0 | 0 | 0 | 1.07e+0 | 0 | 0 | 0 | 0 | 3.47e-4 | 3.72e-2 | -1.42e+0 |
| ODP | kg CFC-11 eq | 4.28e-7 | 3.62e-10 | 4.28e-8 | 0 | 0 | 0 | 2.36e-6 | 0 | 0 | 0 | 0 | 5.96e-12 | 2.54e-10 | -3.88e-8 |
| AP | kg SO2 eq | 6.72e-4 | 6.74e-5 | 7.42e-5 | 0 | 0 | 0 | 4.07e-3 | 0 | 0 | 0 | 0 | 1.11e-6 | 2.44e-5 | -4.90e-3 |
| EP | kg N eq | 6.24e-4 | 1.86e-5 | 6.43e-5 | 0 | 0 | 0 | 3.54e-3 | 0 | 0 | 0 | 0 | 3.06e-7 | 1.58e-5 | -4.89e-3 |
| POCP | kg O3 eq | 8.25e-3 | 1.54e-3 | 9.87e-4 | 0 | 0 | 0 | 5.39e-2 | 0 | 0 | 0 | 0 | 2.54e-5 | 3.21e-4 | -7.96e-2 |
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GWP-total | kg CO2-eq | 1.74e-1 | 2.11e-2 | 1.96e-2 | 0 | 0 | 0 | 2.36e+0 | 0 | 0 | 0 | 0 | 6.95e-4 | 7.44e-2 | -2.83e+0 |
| ODP | kg CFC-11 eq | 4.28e-7 | 3.62e-10 | 4.28e-8 | 0 | 0 | 0 | 5.18e-6 | 0 | 0 | 0 | 0 | 1.19e-11 | 5.08e-10 | -7.76e-8 |
| AP | kg SO2 eq | 6.72e-4 | 6.74e-5 | 7.42e-5 | 0 | 0 | 0 | 8.94e-3 | 0 | 0 | 0 | 0 | 2.22e-6 | 4.87e-5 | -9.80e-3 |
| EP | kg N eq | 6.24e-4 | 1.86e-5 | 6.43e-5 | 0 | 0 | 0 | 7.78e-3 | 0 | 0 | 0 | 0 | 6.12e-7 | 3.15e-5 | -9.77e-3 |
| POCP | kg O3 eq | 8.25e-3 | 1.54e-3 | 9.87e-4 | 0 | 0 | 0 | 1.19e-1 | 0 | 0 | 0 | 0 | 5.08e-5 | 6.41e-4 | -1.59e-1 |
Resource Use Indicators
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RPRE | MJ | 1.09e-1 | 2.92e-3 | 1.12e-2 | 0 | 0 | 0 | 6.18e-1 | 0 | 0 | 0 | 0 | 4.80e-5 | 7.80e-4 | -3.61e-1 |
| RPRM | MJ | 4.93e-2 | 9.66e-4 | 5.02e-3 | 0 | 0 | 0 | 2.76e-1 | 0 | 0 | 0 | 0 | 1.59e-5 | 1.99e-4 | -5.16e+0 |
| RPRT | MJ | 1.59e-1 | 3.89e-3 | 1.63e-2 | 0 | 0 | 0 | 8.94e-1 | 0 | 0 | 0 | 0 | 6.39e-5 | 9.79e-4 | -5.52e+0 |
| NRPRE | MJ | 2.11e+0 | 3.07e-1 | 2.42e-1 | 0 | 0 | 0 | 1.33e+1 | 0 | 0 | 0 | 0 | 5.04e-3 | 1.67e-1 | -1.58e+1 |
| NRPRM | MJ | 1.35e-4 | 5.28e-6 | 1.41e-5 | 0 | 0 | 0 | 7.72e-4 | 0 | 0 | 0 | 0 | 8.69e-8 | 6.48e-7 | -7.48e-4 |
| NRPRT | MJ | 2.11e+0 | 3.07e-1 | 2.42e-1 | 0 | 0 | 0 | 1.33e+1 | 0 | 0 | 0 | 0 | 5.04e-3 | 1.67e-1 | -1.58e+1 |
| ADPF | MJ | 1.92e-1 | 4.31e-2 | 2.36e-2 | 0 | 0 | 0 | 1.29e+0 | 0 | 0 | 0 | 0 | 7.08e-4 | 2.48e-2 | -9.74e-1 |
| FW | m3 | 1.48e-3 | 4.01e-5 | 1.52e-4 | 0 | 0 | 0 | 8.34e-3 | 0 | 0 | 0 | 0 | 6.59e-7 | 1.65e-5 | -6.81e-3 |
| RE | MJ | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| NRSF | MJ | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| RSF | MJ | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| SM | kg | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RPRE | MJ | 1.09e-1 | 2.92e-3 | 1.12e-2 | 0 | 0 | 0 | 1.36e+0 | 0 | 0 | 0 | 0 | 9.61e-5 | 1.56e-3 | -7.21e-1 |
| RPRM | MJ | 4.93e-2 | 9.66e-4 | 5.02e-3 | 0 | 0 | 0 | 6.08e-1 | 0 | 0 | 0 | 0 | 3.18e-5 | 3.97e-4 | -1.03e+1 |
| RPRT | MJ | 1.59e-1 | 3.89e-3 | 1.63e-2 | 0 | 0 | 0 | 1.97e+0 | 0 | 0 | 0 | 0 | 1.28e-4 | 1.96e-3 | -1.10e+1 |
| NRPRE | MJ | 2.11e+0 | 3.07e-1 | 2.42e-1 | 0 | 0 | 0 | 2.92e+1 | 0 | 0 | 0 | 0 | 1.01e-2 | 3.33e-1 | -3.17e+1 |
| NRPRM | MJ | 1.35e-4 | 5.28e-6 | 1.41e-5 | 0 | 0 | 0 | 1.70e-3 | 0 | 0 | 0 | 0 | 1.74e-7 | 1.30e-6 | -1.50e-3 |
| NRPRT | MJ | 2.11e+0 | 3.07e-1 | 2.42e-1 | 0 | 0 | 0 | 2.92e+1 | 0 | 0 | 0 | 0 | 1.01e-2 | 3.33e-1 | -3.17e+1 |
| ADPF | MJ | 1.92e-1 | 4.31e-2 | 2.36e-2 | 0 | 0 | 0 | 2.85e+0 | 0 | 0 | 0 | 0 | 1.42e-3 | 4.96e-2 | -1.95e+0 |
| FW | m3 | 1.48e-3 | 4.01e-5 | 1.52e-4 | 0 | 0 | 0 | 1.84e-2 | 0 | 0 | 0 | 0 | 1.32e-6 | 3.29e-5 | -1.36e-2 |
| RE | MJ | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| NRSF | MJ | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| RSF | MJ | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| SM | kg | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
Waste and Output Flow Indicators
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HWD | kg | 7.72e-5 | 0 | 7.72e-6 | 0 | 0 | 0 | 4.24e-4 | 0 | 0 | 0 | 0 | 0 | 1.03e-2 | -6.98e+0 |
| NHWD | kg | 2.18e-5 | 0 | 7.65e-3 | 0 | 0 | 0 | 3.83e-2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| MR | kg | 7.80e-4 | 0 | 1.02e-2 | 0 | 0 | 0 | 5.50e-2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| MER | kg | 8.99e-5 | 0 | 8.99e-6 | 0 | 0 | 0 | 4.95e-4 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| ILLRW | m3 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| HLLRW | m3 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HWD | kg | 7.72e-5 | 0 | 7.72e-6 | 0 | 0 | 0 | 9.34e-4 | 0 | 0 | 0 | 0 | 0 | 2.05e-2 | -1.40e+1 |
| NHWD | kg | 2.18e-5 | 0 | 7.65e-3 | 0 | 0 | 0 | 8.44e-2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| MR | kg | 7.80e-4 | 0 | 1.02e-2 | 0 | 0 | 0 | 1.21e-1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| MER | kg | 8.99e-5 | 0 | 8.99e-6 | 0 | 0 | 0 | 1.09e-3 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| ILLRW | m3 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| HLLRW | m3 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
Carbon Emissions and Removals
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Bio Carbon Removal from Product | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Bio Carbon Emission from Product | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Bio Carbon Removal from Packaging | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Bio Carbon Emission from Packaging | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Bio Carbon Emission from Waste during Manufacturing (renewable source) | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Calcination Carbon Removal | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Carbonation Carbon Emission | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Carbon Emission from Waste during Manufacturing (non-renewable source) | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Bio Carbon Removal from Product | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Bio Carbon Emission from Product | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Bio Carbon Removal from Packaging | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Bio Carbon Emission from Packaging | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Bio Carbon Emission from Waste during Manufacturing (renewable source) | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Calcination Carbon Removal | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Carbonation Carbon Emission | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Carbon Emission from Waste during Manufacturing (non-renewable source) | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
ND = not declared. Life cycle modules: A1-A3 product stage, A4-A5 construction process, B use stage, C end of life, D benefits and loads beyond the system boundary.
Material composition
| Material/Component Category | Origin | % Mass |
|---|---|---|
| Additive | < 10 | |
| Filler | < 10 | |
| Pigment | 25 - 38 | |
| Resin | 28 - 43 | |
| Solvent | 20 - 30 |
| Packaging material | Origin | Mass (kg) |
|---|---|---|
| Steel generic | 0.02 |
| Biogenic carbon content | kg C per m2 |
|---|---|
| Biogenic carbon content in product | 0 |
| Biogenic carbon content in accompanying packaging | 0 |
Hazardous substances
PARACHLOROBENZO TRIFLUORIDE (98-56-6)
TITANIUM DIOXIDE (13463-67-7)
N-BUTYL ACETATE (123-86-4)
ETHYL BENZENE (100-41-4)
CARBON BLACK (1333-86-4)
HOMOPOLYMER OF HDI (28182-81-2)
METHYL ETHYL KETONE (78-93-3)
AROMATIC HYDROCARBON (64742-95-6)
HEXAMETHYLENE DIISOCYANATE (822-06-0)
Scenarios
Transport to the building site (A4)
- Fuel type
- Diesel
- Vehicle type
- Truck and Trailer
- Transport distance
- 1000 km
- Capacity utilization
- 33%
- Weight of products transported
- 0.200 kg
- Packaging mass
- 0.0178 kg
End of life (C1-C4)
- Collected separately
- 0.200 kg
- Landfill
- 2.00 kg
Product description
Carboxane 960 is an ultra-weatherable Fluorourethane finish engineered for maximum color and gloss retention in extreme outdoor environments. It serves as a premium topcoat that exceeds rigorous industry standards, such as SSPC Paint 47 and AWWA D102-21, providing a superior performance upgrade over standard urethanes. Applied as a thin film at 2-3 mils DFT, it is specifically optimized for easy brush and roll application while maintaining a 61% volume solids profile and low VOC levels. Designed to be used over high-performance primers like the Carboguard or Carbomastic series, it offers a high-gloss, UV-stable shield that withstands continuous temperatures up to 200°F (93°C).
Interpretation
Raw materials are sourced from suppliers, transported to manufacturing facilities, and mixed to produce products. The product stage (A1-A3) drives the environmental impact, due to raw material production and energy use. This impacts is amplified in the use phase due to recoatings, making B4 the largest contributor to the overall impact. Market and Technical service life scenarios differ depending on assumed estimated service life (ESL), with lower impacts for longer-lived products. Those scenarios are constructed using PCR prescriptions that are highly conservative, as they assumed the replacemnt of the full coating sytem. End-of-life impacts are relatively low, as products are assumed to be landfilled with building demolition waste. Switching to renewable energy is advised for products with high manufacturing energy demands. The manufacturer should explore lower-impact raw materials and work with suppliers using sustainable methods or renewable energy to enhance product sustainability.
LCIA results are relative expressions and do not predict impacts on category endpoints, the exceeding of thresholds, safety margins or risks. EPDs are comparable only when they follow the same PCR, functional unit and system boundary. The full EPD (PDF) contains the methodology, scenario assumptions and verification statement.
