Environmental Product Declaration
Won-Door FireGuard™ Moveable FireWall
by Won-Door
Environmental Product Declaration (EPD) for Won-Door FireGuard™ Moveable FireWall, manufactured by Won-Door. Declaration SmartEPD-2026-133-0866-01.1, prepared according to UL Part B: Commercial Steel Doors and Steel Frames, valid until May 18, 2031.
- Declared unit
- 1 commercial steel door, nominal dimensions of 3-feet x 7-feet considered in isolation of product
- Valid until
- May 18, 2031
- PCR
- Commercial Steel Doors and Steel Frames
Declaration details
- Manufacturer
- Won-Door
- Program operator
- Smart EPD
- Declaration number
- SmartEPD-2026-133-0866-01.1
- Date of issue
- May 18, 2026
- Valid until
- May 18, 2031
- Product category rules (PCR)
- UL Part B: Commercial Steel Doors and Steel Frames (version 3)
- Standard
- ISO 14025:2006
- Declared unit
- 1 commercial steel door, nominal dimensions of 3-feet x 7-feet considered in isolation of product
- System boundary
- Cradle to gate with other options (A1 - A3, A4, A5, C2 - C4)
- Product specificity
- Product Specific
- Manufacturing specificity
- Facility Specific
- Manufacturing plant
- WON-DOOR (1865 South 3480 West, Salt Lake City, UT 84104, USA)
- Product SKU
- Fireguard Moveable Wall
- Product service life
- 30 years
- Verifier
- Amy Landis, Michigan Technological University
- LCA software
- SimaPro 10.2
- Program instructions
- Smart EPD General Program Instructions v.2.0, March 2025
Life cycle assessment results
Results per 1 commercial steel door, nominal dimensions of 3-feet x 7-feet considered in isolation of product.
Environmental Impact Assessment Results
| Indicator | Unit | A1-A3 | A4 | A5 | C2 | C3 | C4 |
|---|---|---|---|---|---|---|---|
| GWP-total | kg CO2 eq | 3.81e+2 | 7.17e+0 | 7.09e-2 | 1.08e-1 | 5.92e+1 | 8.22e-2 |
| GWP-fossil | kg CO2 eq | 3.80e+2 | 7.16e+0 | 7.09e-2 | 1.08e-1 | 5.92e+1 | 8.18e-2 |
| GWP-biogenic | kg CO2 eq | 7.75e-1 | 1.47e-3 | 1.87e-5 | 2.22e-5 | 3.53e-3 | 2.52e-5 |
| GWP-luluc | kg CO2 eq | 2.92e-1 | 2.46e-3 | 2.59e-6 | 3.72e-5 | 4.60e-4 | 3.68e-4 |
| ODP | kg CFC-11 eq | 2.21e-6 | 1.14e-7 | 1.19e-10 | 1.73e-9 | 1.95e-8 | 8.23e-10 |
| AP | kg SO2 eq | 1.54e+0 | 1.48e-2 | 6.62e-5 | 2.23e-4 | 1.26e-2 | 4.39e-4 |
| SFP | kg O3 eq | 1.82e+1 | 2.85e-1 | 1.88e-3 | 4.30e-3 | 3.76e-1 | 1.13e-2 |
| EP-freshwater | kg P eq | 7.33e-2 | 2.67e-4 | 3.53e-6 | 4.03e-6 | 5.43e-4 | 1.00e-5 |
| EP-marine | kg N eq | 1.89e-1 | 2.46e-3 | 1.74e-5 | 3.71e-5 | 3.49e-3 | 9.65e-5 |
| ADP-fossil | MJ | 4.71e+3 | 1.09e+2 | 6.05e-2 | 1.64e+0 | 1.08e+1 | 9.54e-1 |
Resource Use Indicators
| Indicator | Unit | A1-A3 | A4 | A5 | C2 | C3 | C4 |
|---|---|---|---|---|---|---|---|
| RPRE | MJ | 4.38e+2 | 1.24e+0 | 2.41e-3 | 1.88e-2 | 4.35e-1 | 1.53e-1 |
| RPRM | MJ | 4.21e+1 | 0 | 0 | 0 | 0 | 0 |
| RPRT | MJ | 4.80e+2 | 1.24e+0 | 2.41e-3 | 1.88e-2 | 4.35e-1 | 1.53e-1 |
| NRPRE | MJ | 4.71e+3 | 1.09e+2 | 6.05e-2 | 1.64e+0 | 1.08e+1 | 9.54e-1 |
| NRPRM | MJ | 0 | 0 | 0 | 0 | 0 | 0 |
| NRPRT | MJ | 4.71e+3 | 1.09e+2 | 6.05e-2 | 1.64e+0 | 1.08e+1 | 9.54e-1 |
| SM | kg | 0 | 0 | 0 | 0 | 0 | 0 |
| RSF | MJ | 0 | 0 | 0 | 0 | 0 | 0 |
| NRSF | MJ | 0 | 0 | 0 | 0 | 0 | 0 |
| RE | MJ | 0 | 0 | 0 | 0 | 0 | 0 |
| FW | m3 | 2.90e+2 | 4.61e-1 | 8.91e-3 | 6.97e-3 | 1.90e+0 | 1.21e-2 |
Waste and Output Flow Indicators
| Indicator | Unit | A1-A3 | A4 | A5 | C2 | C3 | C4 |
|---|---|---|---|---|---|---|---|
| HWD | kg | 0 | 0 | 0 | 0 | 0 | 2.22e-1 |
| NHWD | kg | 6.95e-2 | 0 | 6.72e-3 | 0 | 0 | 1.21e+1 |
| HLLRW | kg | 0 | 0 | 0 | 0 | 0 | 0 |
| ILLRW | kg | 0 | 0 | 0 | 0 | 0 | 0 |
| CRU | kg | 0 | 0 | 0 | 0 | 0 | 0 |
| MR | kg | 9.00e-1 | 0 | 2.08e+0 | 0 | 1.30e+1 | 0 |
| MER | kg | 3.19e-1 | 0 | 2.33e-1 | 0 | 2.49e+1 | 0 |
| EE | MJ | 8.26e+0 | 0 | 4.10e+0 | 0 | 7.66e+2 | 0 |
Carbon Emissions and Removals
| Indicator | Unit | A1-A3 | A4 | A5 | C2 | C3 | C4 |
|---|---|---|---|---|---|---|---|
| Bio Carbon Removal from Product | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 |
| Bio Carbon Emission from Product | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 |
| Bio Carbon Removal from Packaging | kg CO2 | -5.57e+0 | 0 | 0 | 0 | 0 | 0 |
| Bio Carbon Emission from Packaging | kg CO2 | 1.67e+0 | 0 | 3.89e+0 | 0 | 0 | 0 |
| Bio Carbon Emission from Waste during Manufacturing (renewable source) | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 |
| Calcination Carbon Removal | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 |
| Carbonation Carbon Emission | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 |
| Carbon Emission from Waste during Manufacturing (non-renewable source) | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 |
ND = not declared. Life cycle modules: A1-A3 product stage, A4-A5 construction process, B use stage, C end of life, D benefits and loads beyond the system boundary.
Material composition
| Material/Component Category | Origin | % Mass |
|---|---|---|
| Drive and electrical | Las Vegas, NV, Salt Lake City, UT | 2.40 |
| Fasteners | Salt Lake City, UT | 1.36 |
| Hardware and movement | Spanish Fork, UT, Rancho Dominguez, CA, Salt Lake City, UT | 7.20 |
| Sealing and insulation | Dayton, OH, Chino, CA, La Habra, CA, Salt Lake City, UT | 57.8 |
| Structure and frame | Spanish Fork, UT, Salt Lake City, UT | 31.2 |
| Packaging material | Origin | Mass (kg) |
|---|---|---|
| Cardboard | 2.29 | |
| Plastic ldpe | 0.030 |
| Biogenic carbon content | kg C per commercial steel door, nominal dimensions of 3-feet x 7-feet considered in isolation |
|---|---|
| Biogenic carbon content in product | 0 |
| Biogenic carbon content in accompanying packaging | 1.06 |
Hazardous substances
Lead acid battery
Scenarios
Transport to the building site (A4)
- Fuel type
- Diesel
- Vehicle type
- Truck and Trailer
- Transport distance
- 1540 km
- Capacity utilization
- 33.0%
- Weight of products transported
- 52.6 kg
- Packaging mass
- 2.32 kg
End of life (C1-C4)
- Collected with mixed construction waste
- 50.2 kg
- Recycling
- 13.0 kg
- Landfill
- 12.4 kg
- Incineration
- 24.9 kg
Product description

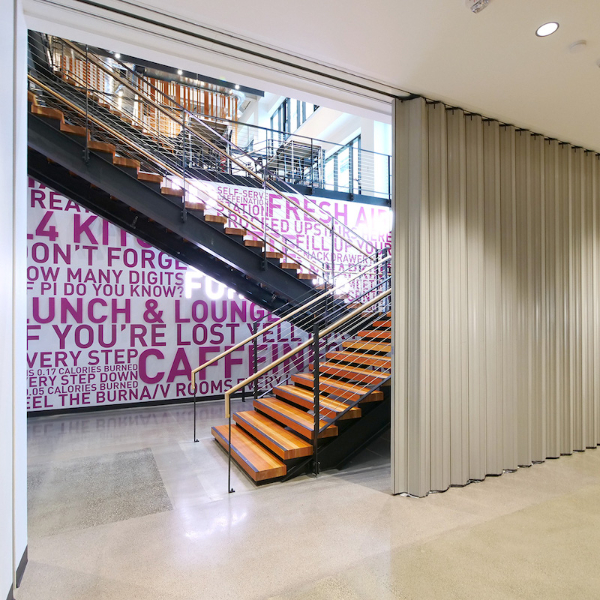

The Won-Door Moveable FireWall™ (MFW) is a fire-rated accordion folding wall system designed to act as a movable extension of a fire barrier, providing secure and compliant solutions for large openings. Available in 1-hour (MFW I) and 2-hour (MFW II) fire ratings, it meets UL 263/ASTM E119 standards and UL Design #U520 requirements for fire-resistance. The system is header-hung with no floor track, supports heights up to 15' and lengths up to 40' for straight applications, and offers curved configurations. It is ADA-compliant for egress with approval from the Authority Having Jurisdiction (AHJ) and includes optional features like key switches, backlit exit hardware, infrared detectors, and LCD displays for enhanced functionality and safety.
Interpretation
The manufacturing of Won-Door products involves the direct procurement of raw materials and their subsequent processing at US-based facilities. The Product Stage (A1–A3) is the primary impact driver due to the energy required for raw material extraction and assembly. A limitation of this study is that upstream impacts are based on industry-average profiles rather than specific supplier data.
The 30-year Reference Service Life is contingent upon standard indoor use and adherence to the manufacturer's maintenance schedule. To modify the current environmental profile, evaluating a transition to renewable energy sources for manufacturing is suggested. Additionally, Won-Door should assess substituting raw material inputs with alternative options and prioritize collecting primary data from suppliers regarding their specific production techniques or energy mixes.
LCIA results are relative expressions and do not predict impacts on category endpoints, the exceeding of thresholds, safety margins or risks. EPDs are comparable only when they follow the same PCR, functional unit and system boundary. The full EPD (PDF) contains the methodology, scenario assumptions and verification statement.
