Standard Density SFRM ( MK Patch , MK-10/HB EXT SET WHITE, MK-10/HB EXT SET, MK-10/HB WHITE, MK-1000/HB, MK-1000/HB EXT SET, MK-10/HB, MK-10/HB EXT SET, MK-6 EXT SET, MK-6/GF, MK-6/HY, MK-6/HY EXT SET, MK-6/HY EXT SET, MK-6S, RG, Z-3306/G)

Declaration details

Manufacturer

GCP/Saint-Gobain

Program operator

Smart EPD

Declaration number

SmartEPD-2026-153-1034-01

Date of issue

August 18, 2026

Valid until

August 18, 2031

Product category rules (PCR)

Smart EPD® Part B PCR for Spray-Applied Fire-Resistive Materials, 1000-003, v4.0 (version 4.0)

Standard

ISO 14025:2006 and ISO 21930:2017

Declared unit

1 metric ton of product

System boundary

Cradle to gate with other options (A1 – A3, specify other options)

Product specificity

Product Average

Manufacturing specificity

Manufacturer Average

Manufacturing plants

Santa Ana (2500 South Garnsey Street, Santa Ana, CA, USA); Ajax (294 Clements Rd W, Ajax, ON, Canada)

Product category

Finishes

Verifier

Alison Lee, Independent Contractor

LCA software

Sphera LCA for Experts (formerly GaBi) 10.9

Program instructions

Smart EPD General Program Instructions v.2.0, March 2025

Life cycle assessment results

Results per 1 metric ton of product.

Environmental Impact Assessment Results

Resource Use Indicators

Waste and Output Flow Indicators

Carbon Emissions and Removals

ND = not declared. Life cycle modules: A1-A3 product stage, A4-A5 construction process, B use stage, C end of life, D benefits and loads beyond the system boundary.

Material composition

Hazardous substances

No substances required to be reported as hazardous are associated with the production of this product

Product description

Spray-Applied Fire-Resistive Materials (SFRM) (UN CPC 54650) are composed primarily of binding agents such as cement or gypsum and may incorporate supplementary materials including quartz, bauxite, and other additives. These additional components are used to reduce density and enhance insulating properties by introducing entrained air. Chemical hardeners may also be included to accelerate curing or to improve the mechanical strength of the final product.

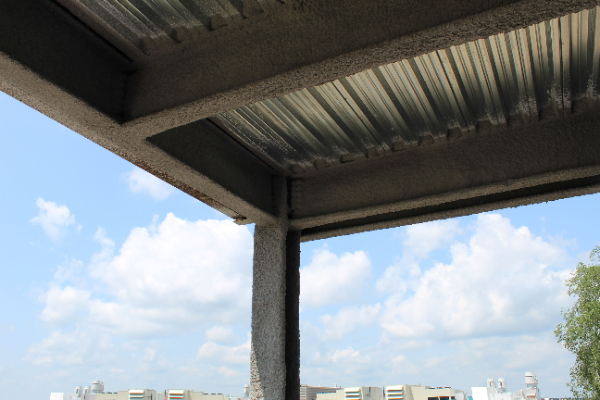

Passive fire protection materials (commonly referred to as fireproofing) are designed to prevent or delay the structural failure of steel and concrete elements when exposed to fire. These materials function by insulating structural members, thereby slowing heat transfer and preserving structural integrity for a defined period. A variety of fireproofing materials are available depending on the application requirements. Applied fireproofing systems are typically available in both wet-mix and dry-mix formulations and are most commonly spray-applied, although trowel application is also used in certain cases.

SFRM products are generally supplied as dry powder in bags and mixed with water at the point of application. Modern formulations are asbestos-free and do not contain intentionally added free crystalline silica, aligning with current health and safety standards. This Environmental Product Declaration (EPD) specifically covers standard-density SFRM products.

This report serves as the basis for a company-specific EPD representing a range of SFRM products manufactured at three GCP Applied Technologies facilities in North America, produced in accordance with varying product specifications.

Interpretation

The cradle-to-gate production of standard-density Spray-Applied Fire-Resistive Materials (SFRM) requires approximately 4.0 GJ of total primary energy (LHV) and results in ~179 kg CO₂e of greenhouse gas emissions per metric ton of product (GWP, excluding biogenic carbon, IPCC AR6).

Across the life cycle stages, Module A1 (raw material extraction and upstream processing) is the dominant contributor, accounting for approximately 67% of total GWP (120 kg CO₂e).

Module A2 (transportation) is the second largest contributor, representing approximately 27% of total GWP (47.9 kg CO₂e), driven by the transport of raw materials to manufacturing facilities. Transportation also contributes notably to smog formation potential (POCP), where it represents a significant share of impacts.

Module A3 (manufacturing) contributes the remaining ~6% of total GWP (11.3 kg CO₂e), primarily associated with on-site energy consumption and operational processes. From an energy perspective, total primary energy demand is dominated by non-renewable sources (~3.55 GJ), with renewable primary energy contributing approximately 0.42 GJ. Similar to GWP trends, energy consumption is largely driven by upstream processes (A1), followed by transportation (A2), with manufacturing (A3) contributing a smaller share.

Overall, the environmental profile of standard-density SFRM is primarily influenced by raw material production and transportation, while manufacturing impacts remain comparatively limited
