Environmental Product Declaration

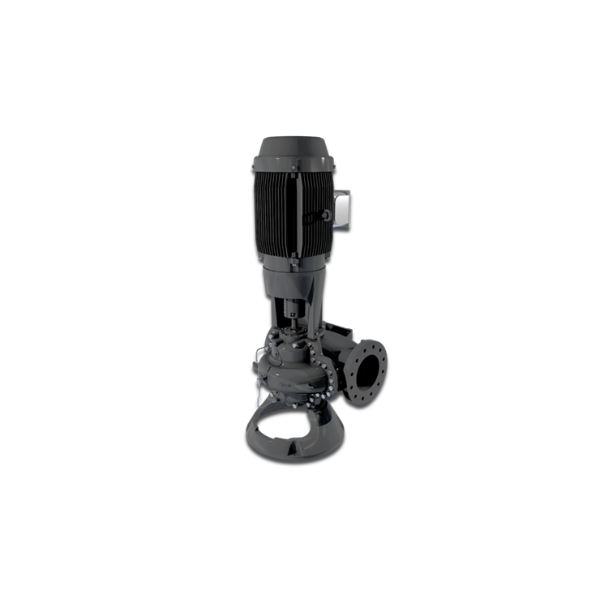

KPVS 8015 (250hp) Pump
Environmental Product Declaration (EPD) for KPVS 8015 (250hp) Pump, manufactured by Grundfos Holding A/S. Declaration SmartEPD-2026-116-0782-01, prepared according to Part B: Requirements on the EPD for Pumps for liquids and liquids with solids, valid until March 10, 2031.
- Declared unit
- 1 piece of product
- Valid until
- March 10, 2031
- PCR
- Pumps for liquids and liquids with solids
Declaration details
- Manufacturer
- Grundfos Holding A/S
- Program operator
- Smart EPD
- Declaration number
- SmartEPD-2026-116-0782-01
- Date of issue
- March 10, 2026
- Valid until
- March 10, 2031
- Product category rules (PCR)
- Part B: Requirements on the EPD for Pumps for liquids and liquids with solids (version 9)
- Standard
- ISO 21930 and ISO 14025:2006
- Declared unit
- 1 piece of product
- System boundary
- Cradle to grave (A1 - A3, A4, A5, B1 - B7, C1 - C4, D)
- Product specificity
- Product Specific
- Manufacturing specificity
- Facility Specific
- Manufacturing plant
- Grundfos Brookshire (902 Koomey Rd, Brookshire, TX, USA)
- Product category
- Mechanical › HvacPumps
- Product SKU
- The declared unit is one piece of KPVS 8015 pump variant assembled with 250hp electric motor. Pump technical data for KPVS 8015 (250hp) Name Value Unit Voltage 460 V Frequency 60 Hz Number of phases 3 Number of poles 4 Rated flow 1000 m3/h Rated head 62 m Nominal power 250 hp Speed full load 1800…
- Product service life
- 10 years
- Verifier
- Kim Allbury
- LCA software
- Sphera LCA for Experts (formerly GaBi) 10.9
- Program instructions
- Smart EPD General Program Instructions v.2.0, March 2025
Life cycle assessment results
Results per 1 piece of product.
Environmental Impact Assessment Results
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GWP-total | kg CO2 eq | 4.42e+3 | 4.35e+1 | 1.11e+2 | 0 | 2.42e+2 | ND | ND | ND | 2.88e+6 | 0 | 0 | 2.02e+1 | 3.67e+1 | 1.40e+0 | -1.94e+3 |
| GWP-total (excl biogenic) | kg CO2 eq | 4.51e+3 | 4.32e+1 | 2.46e+0 | 0 | 2.42e+2 | ND | ND | ND | 2.88e+6 | 0 | 0 | 2.01e+1 | 3.66e+1 | 1.40e+0 | -1.93e+3 |
| GWP-total (incl biogenic) | kg CO2 eq | 4.41e+3 | 4.34e+1 | 1.11e+2 | 0 | 2.42e+2 | ND | ND | ND | 2.88e+6 | 0 | 0 | 2.02e+1 | 3.66e+1 | 1.40e+0 | -1.92e+3 |
| ODP | kg CFC 11 eq | 1.42e-6 | 1.24e-11 | 1.53e-11 | 0 | 1.53e-7 | ND | ND | ND | 2.55e-5 | 0 | 0 | 5.75e-12 | 3.24e-10 | 5.49e-12 | -4.88e-8 |
| AP | kg SO2 eq | 1.66e+1 | 2.05e-1 | 1.78e-2 | 0 | 1.38e+0 | ND | ND | ND | 3.49e+3 | 0 | 0 | 9.55e-2 | 4.44e-2 | 7.58e-3 | -9.32e+0 |
| EP-freshwater | kg P eq | 9.29e-3 | 3.56e-5 | 1.38e-6 | 0 | 3.28e-3 | ND | ND | ND | 4.36e-1 | 0 | 0 | 1.66e-5 | 5.54e-6 | 6.55e-5 | -4.79e-4 |
| EP-marine | kg N eq | 7.05e+0 | 1.91e-1 | 1.24e-2 | 0 | 5.25e-1 | ND | ND | ND | 1.46e+3 | 0 | 0 | 8.88e-2 | 1.86e-2 | 3.62e-3 | -2.37e+0 |
| POCP | kg O3 eq | 2.57e+2 | 4.71e+0 | 3.86e-1 | 0 | 1.88e+1 | ND | ND | ND | 5.22e+4 | 0 | 0 | 2.19e+0 | 6.71e-1 | 1.31e-1 | -8.67e+1 |
| HTP-c | CTUh | 2.67e-6 | 3.94e-10 | 5.13e-10 | 0 | 2.51e-7 | ND | ND | ND | 2.72e-4 | 0 | 0 | 1.83e-10 | 3.65e-9 | 5.28e-11 | -4.72e-6 |
| HTP-nc | CTUh | 7.81e-8 | 6.45e-10 | 1.63e-11 | 0 | 4.15e-8 | ND | ND | ND | 5.68e-6 | 0 | 0 | 3.01e-10 | 7.23e-11 | 2.53e-11 | -5.27e-9 |
| ETP-fw | CTUe | 5.84e+1 | 2.86e+0 | 6.73e-2 | 0 | 8.38e+0 | ND | ND | ND | 1.72e+4 | 0 | 0 | 1.33e+0 | 2.19e-1 | 1.10e-1 | -1.33e+1 |
| PM | kg PM2.5 eq | 1.84e+0 | 4.84e-3 | 6.63e-4 | 0 | 1.98e-1 | ND | ND | ND | 2.46e+2 | 0 | 0 | 2.25e-3 | 3.50e-3 | 5.99e-4 | -8.85e-1 |
Resource Use Indicators
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PERE | MJ, net calorific value | 1.20e+4 | 2.34e+1 | 1.16e+3 | ND | 5.91e+2 | ND | ND | ND | 1.39e+7 | ND | 0 | 1.09e+1 | 1.77e+2 | 3.82e+0 | -5.35e+3 |
| PERM | MJ, net calorific value | 1.16e+3 | 0 | -1.16e+3 | ND | 0 | ND | ND | ND | 0 | ND | 0 | 0 | 0 | 0 | 0 |
| PERT | MJ, net calorific value | 1.32e+4 | 2.34e+1 | 7.64e+0 | ND | 5.91e+2 | ND | ND | ND | 1.39e+7 | ND | 0 | 1.09e+1 | 1.77e+2 | 3.82e+0 | -5.35e+3 |
| PENRE | MJ, net calorific value | 5.00e+4 | 5.62e+2 | 3.46e+1 | ND | 2.88e+3 | ND | ND | ND | 4.81e+7 | ND | 0 | 2.62e+2 | 6.11e+2 | 2.33e+1 | -1.72e+4 |
| PENRM | MJ, net calorific value | 1.95e+2 | 0 | 0 | ND | 0 | ND | ND | ND | 0 | ND | 0 | 0 | 0 | 0 | 0 |
| PENRT | MJ, net calorific value | 5.02e+4 | 5.62e+2 | 3.46e+1 | ND | 2.88e+3 | ND | ND | ND | 4.81e+7 | ND | 0 | 2.62e+2 | 6.11e+2 | 2.33e+1 | -1.72e+4 |
| SM | kg | 4.72e+2 | 0 | 0 | ND | 1.85e+1 | ND | ND | ND | 0 | ND | 0 | 0 | 0 | 0 | 0 |
| RSF | MJ, net calorific value | 0 | 0 | 0 | ND | 0 | ND | ND | ND | 0 | ND | 0 | 0 | 0 | 0 | 0 |
| NRSF | MJ, net calorific value | 0 | 0 | 0 | ND | 0 | ND | ND | ND | 0 | ND | 0 | 0 | 0 | 0 | 0 |
| FW | m3 | 1.78e+1 | 2.52e-2 | 2.86e-1 | ND | 1.16e+0 | ND | ND | ND | 1.84e+4 | ND | 0 | 1.18e-2 | 2.33e-1 | 4.94e-3 | -3.15e+1 |
Waste and Output Flow Indicators
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HWD | kg | 3.99e+0 | 9.32e-8 | 1.58e-8 | ND | 2.06e+0 | ND | ND | ND | 2.85e-2 | ND | 0 | 4.34e-8 | 3.63e-7 | 5.06e-9 | -1.43e-2 |
| NHWD | kg | 1.50e+2 | 5.75e-2 | 2.18e+0 | ND | 4.42e+1 | ND | ND | ND | 1.65e+4 | ND | 0 | 2.68e-2 | 2.10e-1 | 6.41e+1 | -4.08e+1 |
| RWD | kg | 1.11e+0 | 1.93e-3 | 1.50e-3 | ND | 7.27e-2 | ND | ND | ND | 4.72e+3 | ND | 0 | 8.99e-4 | 6.00e-2 | 3.25e-4 | 5.76e-2 |
| CRU | kg | 0 | 0 | 0 | ND | 0 | ND | ND | ND | 0 | ND | 0 | 0 | 0 | 0 | 0 |
| MFR | kg | 0 | 0 | 0 | ND | 8.88e+1 | ND | ND | ND | 0 | ND | 0 | 0 | 1.17e+3 | 0 | 0 |
| MER | kg | 0 | 0 | 0 | ND | 0 | ND | ND | ND | 0 | ND | 0 | 0 | 0 | 0 | 0 |
| EEE | MJ | 0 | 0 | 1.54e+2 | ND | 0 | ND | ND | ND | 0 | ND | 0 | 0 | 0 | 0 | 0 |
| EET | MJ | 0 | 0 | 2.78e+2 | ND | 0 | ND | ND | ND | 0 | ND | 0 | 0 | 0 | 0 | 0 |
ND = not declared. Life cycle modules: A1-A3 product stage, A4-A5 construction process, B use stage, C end of life, D benefits and loads beyond the system boundary.
Material composition
| Material/Component Category | Origin | % Mass |
|---|---|---|
| Cast iron | 62.2 | |
| Steel | 24 | |
| Copper | 2.9 | |
| Bronze | 2.5 | |
| Aluminum | 1.5 | |
| Stainless steel | 1.1 | |
| Polymers incl. composites & rubbers | 0.5 | |
| Pallet (wood) | 5.2 | |
| Other, incl. inert materials | 0.1 |
| Packaging material | Origin | Mass (kg) |
|---|---|---|
| Wood | 68.039 |
| Biogenic carbon content | kg C per piece |
|---|---|
| Biogenic carbon content in product | 0 |
| Biogenic carbon content in accompanying packaging | 29.6 |
Hazardous substances
EU REACH SVHC: No
Scenarios
Transport to the building site (A4)
- Fuel type
- diesel
- Vehicle type
- Truck - heravy/bulk (EPA SmartWay)
- Transport distance
- 655 km
- Capacity utilization
- 50%
- Packaging mass
- 68 kg
End of life (C1-C4)
- Collected with mixed construction waste
- 1304.4 kg
- Recycling
- 1172.2 kg
- Incineration
- 64.2 kg
Product description
The KPVS vertical split case pump is single- stage, double- entry, radial suction, centrifugal volute pump with high energy efficiency and low lifecycle costs. The split- coupled, split case, vertically mounted frame offers a compact footprint, along with easy installation and maintenance — access to seal and internal components without the need to remove the motor or alignment. The double volute design balances radial loads and reduces vibration, while extending the life of wear rings, shaft seals and bearings. The liquid- cooled sleeve bearing design also adds to increased pump life and uptime.
Interpretation
By comparing the overall life cycle results for the sales-weighted average pumps it can be derived that regardless of KPVS model type, the environmental burden related
to electricity consumption in use stage (B6) has absolute majority for nearly all environmental impact indicators both in one and 10 years period. The Bigger the pump
the greater the environmental impacts in all stages. (Use phase impact is only dependent on energy consumption)
In the case of the 10-year period both the specific (8015-250hp) and the sales average pump has the use phase (B6) as the major contributor in all impact categories.
The manufacturing (A1-A3) impacts in ODP is around 5-10%, in EP-f less than 5%. The impacts of all other stages are nearly invisible on the charts.
In the one-year period, the indicators show a similar tendency. Every other stage than B6, demonstrate significant growth compared to the ten-year results. The A1-A3
impact in ODP is 34%-48%; in EP-F, 16%-26%; in HTP-NC, 12%-21%; in PM, 8%-12%; and in AP, EP-M, POCP, and ETP-FW is almost the same volume, 4%-8%, for
8015-250 hp and the average sales pump. The total emission of GWP gases is located less than 4% in the manufacturing phase.
Conclusion: Motor efficiency and power consumption optimization are key for reducing the product environmental impacts.
LCIA results are relative expressions and do not predict impacts on category endpoints, the exceeding of thresholds, safety margins or risks. EPDs are comparable only when they follow the same PCR, functional unit and system boundary. The full EPD (PDF) contains the methodology, scenario assumptions and verification statement.
