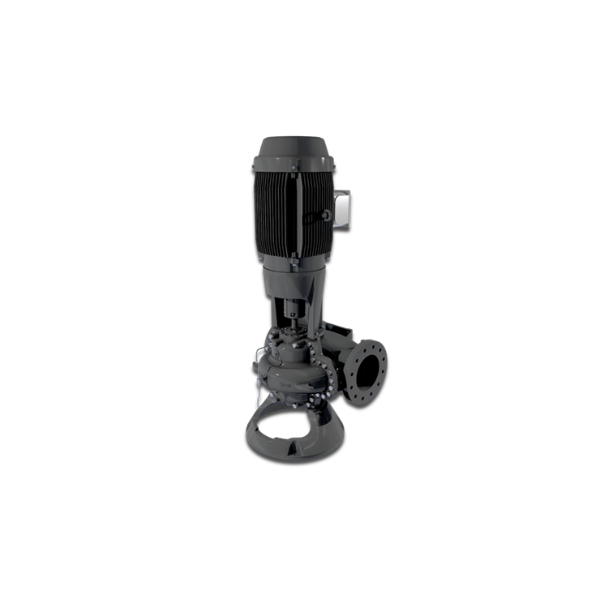

KPVS 6015, 8015, 1015, 1020 (200hp) Pump

Declaration details

Manufacturer

Grundfos Holding A/S

Program operator

Smart EPD

Declaration number

SmartEPD-2026-116-0783-01

Date of issue

March 10, 2026

Valid until

March 10, 2031

Product category rules (PCR)

Part B: Requirements on the EPD for Pumps for liquids and liquids with solids (version 9)

Standard

ISO 21930 and ISO 14025:2006

Declared unit

1 piece of product

System boundary

Cradle to grave (A1 – A3, A4, A5, B1 - B7, C1 - C4)

Product specificity

Product Average

Manufacturing specificity

Facility Specific

Manufacturing plant

Grundfos Brookshire (902 Koomey Rd, Brookshire, TX, USA)

Product category

Mechanical › HvacPumps

Product SKU

The declared unit is 1 piece (pcs.) of a theoretical sales weighted average of KPVS 6015,8015,1015,1020 pump assembled with a 200hp electric motor Pump technical data for KPVS 6015,8015,1015,1020 (200hp) Voltage: 460 V Frequency: 60 Hz Number of phases: 3 Number of poles: 4 Rated flow 675 m3/h…

Product service life

10 years

Verifier

Kim Allbury

LCA software

Sphera LCA for Experts (formerly GaBi) 10.9

Program instructions

Smart EPD General Program Instructions v.2.0, March 2025

Life cycle assessment results

Results per 1 piece of product.

Environmental Impact Assessment Results

Resource Use Indicators

Waste and Output Flow Indicators

ND = not declared. Life cycle modules: A1-A3 product stage, A4-A5 construction process, B use stage, C end of life, D benefits and loads beyond the system boundary.

Material composition

Hazardous substances

No regulated hazardous or dangerous substances are included in this product.

Scenarios

Transport to the building site (A4)

Fuel type

diesel

Vehicle type

Truck - heravy/bulk (EPA SmartWay)

Transport distance

655 km

Capacity utilization

50%

Packaging mass

68 kg

End of life (C1-C4)

Collected with mixed construction waste

1717.7 kg

Recycling

1626.3 kg

Landfill

91.4 kg

Product description

The KPVS vertical split case pump is single- stage, double- entry, radial suction, centrifugal volute pump with high energy efficiency and low lifecycle costs. The split-coupled, split case, vertically mounted frame offers a compact footprint, along with easy installation and maintenance — access to seal and internal components without the need to remove the motor or alignment. The double volute design balances radial loads and reduces vibration, while extending the life of wear rings, shaft seals and bearings. The liquid- cooled sleeve bearing design also adds to increased pump life and uptime.

Interpretation

By comparing the overall life cycle results for the sales-weighted average pumps it can be derived that regardless of KPVS model type, the environmental burden related to electricity consumption in use stage (B6) has absolute majority for nearly all environmental impact indicators both in one and 10 years period. The Bigger the pump the greater the environmental impacts in all stages. (Use phase impact is only dependent on energy consumption)

In the case of the 10-year period both the specific (8015-250hp) and the sales average pump has the use phase (B6) as the major contributor in all impact categories. The manufacturing (A1-A3) impacts in ODP is around 5-10%, in EP-f less than 5%. The impacts of all other stages are nearly invisible on the charts.

In the one-year period, the indicators show a similar tendency. Every other stage than B6, demonstrate significant growth compared to the ten-year results. The A1-A3 impact in ODP is 34%-48%; in EP-F, 16%-26%; in HTP-NC, 12%-21%; in PM, 8%-12%; and in AP, EP-M, POCP, and ETP-FW is almost the same volume, 4%-8%, for 8015-250 hp and the average sales pump. The total emission of GWP gases is located less than 4% in the manufacturing phase.

Conclusion: Motor efficiency and power consumption optimization are key for reducing the product environmental impacts.

Upon comparing the manufacturing impacts, the first and most obvious observation is that the cast iron and the aggregated electric motor production have the most prominent environmental impact on every indicator. In GWP indicators roughly 80% for both pumps, for the rest of the indicators it is from around 50% up to 80%. Transportation (A2) significantly contributes to the AP, EP-m, POCP and PM indicators in a range of 20-35%.

The stainless-steel components despite the low material composition (~1,5% of the product) have a great impact on HTP-c with 26-30% of the total impacts. Another relatively high contributor, considering its tiny mass distribution of less than 0.1% of the product, is the Graphalloy sleeve bearing. Its impact ranges from 10% to 20% in EP-f, likely due to the technological water requirements for production. In the HTP-nc category, its overall impact ranges from 24% to almost 50%.
