BP ESGARD Roof Insulation: High Resistance

Declaration details

Manufacturer

BP Canada

Program operator

Smart EPD

Declaration number

SmartEPD-2025-080-0584-01.2

Date of issue

September 8, 2025

Valid until

September 8, 2030

Product category rules (PCR)

UL Part B: Building Envelope Thermal Insulation Products (version 3)

Standard

ISO 14025:2006 and ISO 21930:2017

Functional unit

1 m2 of product

System boundary

Cradle to gate with other options (A1 - A3, A4, A5, B4, C1 - C4)

Product specificity

Product Specific

Manufacturing specificity

Facility Specific

Manufacturing plant

BP Canada (420 Dupont Street, Pont-Rouge, Québec G3H 1S2, Canada)

Product category

ThermalMoistureProtection › Insulation

Product SKU

BRC05*, BRN05*,BRC10*, BRN10*, BRI10

Product service life

75 years

Verifier

Vijay Thakur, Individual Verifier

LCA software

Sphera LCA for Experts (formerly GaBi) 10.9

Program instructions

Smart EPD General Program Instructions v.2.0, March 2025

Life cycle assessment results

Results per 1 m2 of product.

Environmental Impact Assessment Results

Resource Use Indicators

Waste and Output Flow Indicators

Carbon Emissions and Removals

ND = not declared. Life cycle modules: A1-A3 product stage, A4-A5 construction process, B use stage, C end of life, D benefits and loads beyond the system boundary.

Material composition

Hazardous substances

No substances required to be reported as hazardous are associated with the production of this product

Scenarios

Transport to the building site (A4)

Fuel type

Diesel

Vehicle type

Diesel Pow-ered truck/Trailer

Transport distance

800 km

Capacity utilization

85%

Packaging mass

0.06 kg

End of life (C1-C4)

Collected with mixed construction waste

9.86 kg

Recycling

0.69 kg

Landfill

9.17 kg

Product or material for final disposal

9.86 kg

Product description

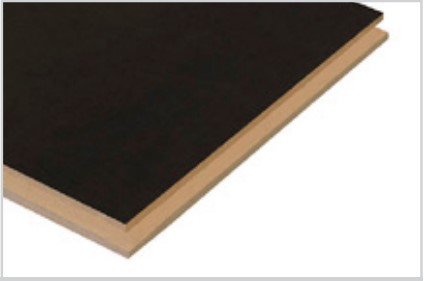

This Environmental Product Declaration covers BP ESGARD Roofing Insulation Panels, including High Resistance variants, natural, coated 1 side and coated 6 sides in 1/2 inch thicknesses. These panels are engineered wood fibre insulation products designed to improve roof durability, thermal performance, and water resistance. Both products are composed of interwoven or interlocking wood fibres treated with a water-repellent wax emulsion, enhancing resistance to water absorption. Panels are either natural, factory-coated on one side or on all sides for added protection and compatibility with roofing applications. BP ESGARD Roof Insulation Panels offer excellent insulating properties while increasing the rigidity and strength of roofing systems. They provide robust support for membranes and are ideal surfaces for the application of hot bitumen or asphalt. The High Strength panels offer enhanced transverse load resistance and compressive strength, meeting CAN ULC-S706 Type II Class 2 and ASTM C-208 Type II Grade 2 standards. These qualities make the panels suitable for demanding roofing environments requiring structural reinforcement and reliable thermal insulation.

Interpretation

To fully understand the results of the life cycle assessment, it is crucial to comprehensively review and ensure completeness, sensitivity, and consistency. The completeness check ensures that all relevant processes, inputs, and outputs are considered in the LCA. This study carefully examined key stages such as raw materials, raw material transportation, and manufacturing, and found no significant data gaps. The sensitivity check supported these findings by exploring the impacts of varying natural gas consumption by ±10%, showing that changes in natural gas usage could reduce environmental impacts. A consistency check was also performed to ensure that the assumptions, data sources, and methodologies used in the LCA were applied consistently and aligned with the study's goals. These checks validate the reliability of the LCA findings and emphasize the significant impact of manufacturing processes, energy efficiency, raw material selection, and end-of-life considerations on the overall environmental performance of the products studied

The results of the life cycle assessment indicate that replacement(B4), the manufacturing process(A3), end of life(C1-C4) and raw material(A1) phases have the most significant impacts on the environmental performance of the products under study. More than 60% of the overall global warming potential of each thickness is attributed to the manufacturing process. The majority of the manufacturing impacts are due to the use of natural gas, which contributes to 95% of the replacement(B4).

Improving energy efficiency at the manufacturing facility in Pont Rouge, QC would help to reduce the overall environmental impacts for all product groupings. Moreover, the sensitivity analysis of the natural gas impacts at ±10% of the current manufacturing model provides valuable insights into the influence of energy inputs on the environmental impact intensity of wood fiber panels production. The results indicate that reducing natural gas consumption by 10% could achieve a more significant decrease in overall environmental impact potentials. These findings underscore the importance of prioritizing natural gas efficiency improvements to achieve more substantial environmental benefits in wood fiber panels production.
