Environmental Product Declaration

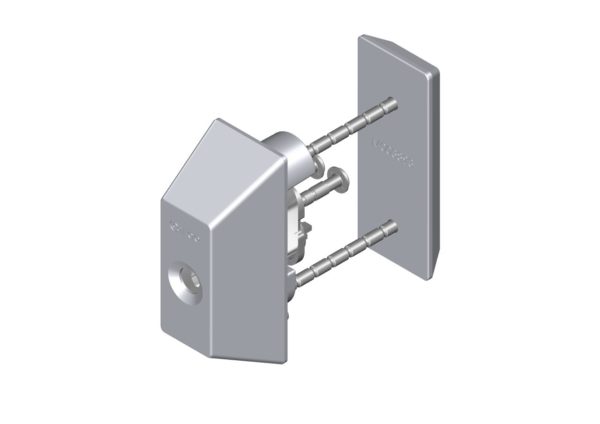

Oval half cylinder with indoor cover plate 5C203.10.ZD
by iLOQ Oy
Environmental Product Declaration (EPD) for Oval half cylinder with indoor cover plate 5C203.10.ZD, manufactured by iLOQ Oy. Declaration SmartEPD-2025-101-0672-01, prepared according to IBU PCR Part B: Requirements on the EPD for Building Hardware products v9, valid until December 3, 2030.
- Declared unit
- 1 piece of product
- Valid until
- December 3, 2030
- PCR
- IBU PCR Part B: Requirements on the EPD for Building Hardware products v9
Declaration details
- Manufacturer
- iLOQ Oy
- Program operator
- Smart EPD
- Declaration number
- SmartEPD-2025-101-0672-01
- Date of issue
- December 3, 2025
- Valid until
- December 3, 2030
- Product category rules (PCR)
- IBU PCR Part B: Requirements on the EPD for Building Hardware products v9 (version 9)
- Standard
- ISO 14025:2006 and EN 15804:2012+A2:2019/AC:2021
- Declared unit
- 1 piece of product
- System boundary
- Cradle to gate with other options (A1 - A3, A4, A5, C1 - C4, D)
- Product specificity
- Product Specific
- Manufacturing specificity
- Facility Specific
- Manufacturing plant
- Oulu (Graniittitie 6, Oulu, Finland)
- Product SKU
- 5C203.10.ZD
- Product service life
- 25 years
- Verifier
- Lucas Pedro Berman, Senda - Consultoria Ambiental & Energetica
- LCA software
- Earthster 1.7
- Program instructions
- Smart EPD General Program Instructions v.2.0, March 2025
Life cycle assessment results
Results per 1 piece of product.
Environmental Impact Assessment Results
| Indicator | Unit | A1-A3 | A4 | A5 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|
| ADP-fossil | MJ | 1.85e+2 | 1.12e+0 | 3.99e-2 | 0 | 4.80e-1 | 6.56e-3 | 3.37e-2 | -6.02e-1 |
| ADP-minerals&metals | kg Sb equivalents | 1.95e-3 | 2.31e-7 | 1.55e-8 | 0 | 9.91e-8 | 1.07e-9 | 3.57e-9 | -1.55e-8 |
| AP | mol H+ equivalents | 9.10e-2 | 2.32e-4 | 9.17e-6 | 0 | 9.94e-5 | 7.16e-6 | 3.92e-5 | -3.87e-4 |
| EP-freshwater | kg P equivalents | 8.32e-3 | 5.06e-6 | 8.90e-7 | 0 | 2.17e-6 | 2.01e-7 | 1.76e-7 | -1.40e-6 |
| EP-marine | kg N equivalents | 1.87e-2 | 7.87e-5 | 4.01e-6 | 0 | 3.37e-5 | 4.63e-6 | 3.08e-5 | -1.80e-4 |
| EP-terrestrial | mol N equivalents | 1.91e-1 | 8.48e-4 | 2.37e-5 | 0 | 3.64e-4 | 3.65e-5 | 2.12e-4 | -1.97e-3 |
| ETP-fw | CTUe | 2.34e+3 | 6.86e-1 | 8.07e-2 | 0 | 2.94e-1 | 1.05e+0 | 3.37e-1 | -1.64e-1 |
| GWP-biogenic | kg CO2-Equivalents | 2.50e-1 | 0 | -2.38e-2 | 0 | 0 | 0 | 0 | 0 |
| GWP-fossil | kg CO2 Equivalents | 1.10e+1 | 7.18e-2 | 4.22e-3 | 0 | 3.08e-2 | 2.67e-2 | 4.64e-2 | -4.33e-2 |
| GWP-luluc | kg CO2-Equivalents | 1.98e-2 | 2.49e-5 | 2.86e-6 | 0 | 1.07e-5 | 2.82e-7 | 3.67e-7 | -4.43e-6 |
| GWP-total | kg CO2 Equivalents | 1.12e+1 | 7.19e-2 | 4.30e-3 | 0 | 3.08e-2 | 2.67e-2 | 4.64e-2 | -4.33e-2 |
| HTP-c | CTUh | 2.27e-7 | 1.96e-10 | 6.85e-12 | 0 | 8.41e-11 | 3.94e-11 | 2.22e-11 | -8.98e-11 |
| HTP-nc | CTUh | 1.55e-6 | 1.00e-9 | 6.89e-11 | 0 | 4.30e-10 | 1.17e-9 | 2.99e-10 | -2.10e-10 |
| IRP | kBq U235 equivalents | 1.09e+0 | 1.26e-3 | 5.66e-4 | 0 | 5.42e-4 | 2.19e-5 | 4.30e-5 | -2.40e-4 |
| ODP | kg CFC11 equivalents | 2.03e-7 | 1.57e-9 | 4.15e-11 | 0 | 6.71e-10 | 8.99e-12 | 7.46e-11 | -6.43e-10 |
| PM | disease incidence | 5.65e-7 | 6.25e-9 | 1.88e-10 | 0 | 2.68e-9 | 3.15e-11 | 1.13e-10 | -1.11e-8 |
| POCP | kg NMVOC equivalents | 6.10e-2 | 3.58e-4 | 8.84e-6 | 0 | 1.54e-4 | 9.02e-6 | 5.16e-5 | -5.90e-4 |
| SQP | dimensionless (pt) | 5.31e+1 | 7.92e-1 | 1.28e-2 | 0 | 3.39e-1 | 1.50e-3 | 2.80e-3 | -3.74e-2 |
| WDP | m3-world equivalents | 5.17e+0 | 5.54e-3 | 5.72e-4 | 0 | 2.38e-3 | 7.39e-4 | 2.85e-3 | -1.63e-3 |
Resource Use Indicators
| Indicator | Unit | A1-A3 | A4 | A5 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|
| FW | m3 | 1.27e-1 | 1.37e-4 | 1.52e-5 | 0 | 5.86e-5 | 1.74e-5 | 6.66e-5 | -3.98e-5 |
| PENRT | MJ | 1.85e+2 | 1.12e+0 | 3.99e-2 | 0 | 4.80e-1 | 6.56e-3 | 3.37e-2 | -6.02e-1 |
| PENRE | MJ | 1.81e+2 | 1.12e+0 | -2.16e-2 | 0 | 4.80e-1 | 0 | -1.40e-1 | -6.02e-1 |
| PENRM | MJ | 2.36e-1 | 0 | 6.15e-2 | 0 | 0 | 0 | 1.74e-1 | 0 |
| PERT | MJ | 1.79e+1 | 2.00e-2 | 6.07e-3 | 0 | 8.57e-3 | 3.62e-4 | 7.53e-4 | -4.08e-3 |
| PERE | MJ | 1.72e+1 | 2.00e-2 | 1.93e-1 | 0 | 8.57e-3 | 0 | 7.53e-4 | -4.08e-3 |
| PERM | MJ | 1.87e-1 | 0 | -1.87e-1 | 0 | 0 | 0 | 0 | 0 |
| SM | kg | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| RSF | MJ | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| NRSF | MJ | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
Waste and Output Flow Indicators
| Indicator | Unit | A1-A3 | A4 | A5 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|
| HWD | kg | 4.75e-2 | 2.76e-5 | 1.42e-5 | 0 | 1.18e-5 | 4.91e-4 | 3.88e-4 | -5.28e-6 |
| NHWD | kg | 2.94e+1 | 7.73e-2 | 1.87e-3 | 0 | 3.31e-2 | 5.08e-4 | 1.31e-3 | -3.47e-3 |
| RWD | kg | 2.81e-4 | 3.11e-7 | 1.45e-7 | 0 | 1.33e-7 | 5.42e-9 | 1.10e-8 | -5.90e-8 |
| CRU | kg | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| MFR | kg | 0 | 0 | 1.10e-2 | 0 | 0 | 6.94e-1 | 0 | 0 |
| MER | kg | 0 | 0 | 2.00e-3 | 0 | 0 | 1.00e-2 | 0 | 0 |
| EEE | MJ | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| EET | MJ | 0 | 0 | 6.15e-2 | 0 | 0 | 0 | 1.74e-1 | 0 |
Carbon Emissions and Removals
| Indicator | Unit | A1-A3 | A4 | A5 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|
| BCRP | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| BCEP | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| BCRK | kg CO2 | -1.78e-3 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| BCEK | kg CO2 | 0 | 0 | 1.78e-3 | 0 | 0 | 0 | 0 | 0 |
| BCEW | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| CCE | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| CCR | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| CWNR | kg CO2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| ND | ND | ND | ND | ND | ND | ND | ND |
ND = not declared. Life cycle modules: A1-A3 product stage, A4-A5 construction process, B use stage, C end of life, D benefits and loads beyond the system boundary.
Material composition
| Material/Component Category | Origin | % Mass |
|---|---|---|
| Stainless Steel | Unknown | 12 |
| Steel | Unknown | 56 |
| Zinc alloy | Unknown | 30 |
| Polymers | Unknown | 0.3 |
| Electronics | Unknown | 0.3 |
| Chemicals | Unknown | 1 |
| Packaging material | Origin | Mass (kg) |
|---|---|---|
| Cardboard | Unknown | 0.011 |
| Plastic | Unknown | 0.002 |
| Biogenic carbon content | kg C per piece |
|---|---|
| Biogenic carbon content in product | 0 |
Hazardous substances
No regulated hazardous or dangerous substances are included in this product.
Scenarios
Transport to the building site (A4)
- Fuel type
- Gasoline/Diesel
- Vehicle type
- Truck
- Transport distance
- 700 km
- Capacity utilization
- 28%
- Weight of products transported
- 0.7036 kg
End of life (C1-C4)
- Collected separately
- 0,7036
- Recycling
- 0.68575 kg
- Incineration with energy recovery
- 0.0105 kg
Product description
The declared product, 5C203.10.ZD, is a single-sided rectangle-shaped cylinder used with key. The product includes an interior plate and an escutcheon. Product is Powder coated to Satin chrome color. The product is installed to one door leaf and is purposed for outdoor and indoor use. The product doesn't requite an external power source or battery, as it harvests the required energy from the movement of the key, in order to read access rights. The locks are installed mainly to residential or institutional doors. Typical use environments include, but are not limited to: School buildings, Warehouses, Apartment complexes and Universities.
The product's purpose is to provide smart access management. The lock cylinder C5S.1.SB is certified according to DIN EN 15684:2013-01, SSF 3522 SBSC 2 and is CE Marked.
Interpretation
The life cycle assessment reveals that 84% of the lock's total climate change impact originates from raw materials included in module A1. Overall, modules A1-A3 account for the majority of impacts. A4 and C1-C4 have some impacts, which aren't significant considering the whole life cycle.
LCIA results are relative expressions and do not predict impacts on category endpoints, the exceeding of thresholds, safety margins or risks. EPDs are comparable only when they follow the same PCR, functional unit and system boundary. The full EPD (PDF) contains the methodology, scenario assumptions and verification statement.
