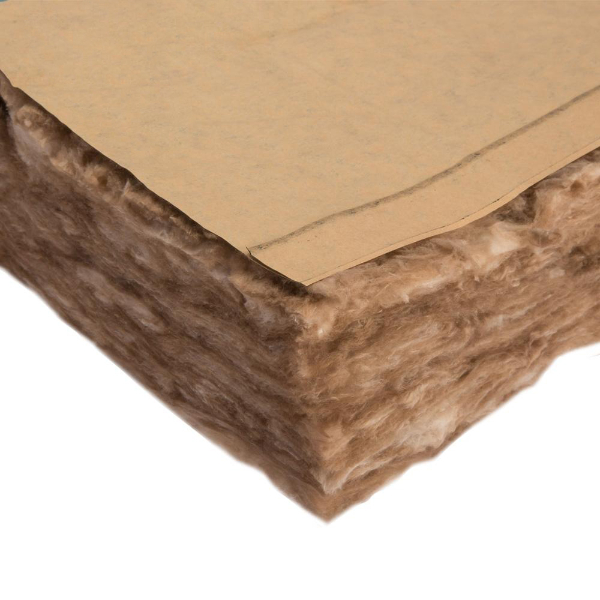

Fiberglass Batts (Faced)

Declaration details

Manufacturer

NAIMA

Program operator

Smart EPD

Declaration number

SmartEPD-2023-003-0013-01

Date of issue

July 14, 2023

Valid until

July 14, 2028

Product category rules (PCR)

Part B: Building Envelope Thermal Insulation Products (version 2)

Standard

ISO 14025 and ISO 21930:2017

Declared unit

1 m2 with average thermal resistance Rsi-1 m2K/W of product

System boundary

Cradle to gate with other options (A1 – A3, A4, A5, C1, C2, C3, C4)

Manufacturing specificity

Industry Average, Facility Specific

Manufacturing plants

Owens Corning (Owens Corning Pkwy, Toledo, OH 43659, USA); CertainTeed (1077 Pleasant St, Norwood, MA 02062, USA); Johns Manville (717 17th St, Denver, CO 80202, USA); Knauf Insulation (Knauf Drive, Shelbyville, IN 46176, USA)

Product category

Thermal/Moisture Prot. › Insulation › Blanket

Verifier

Lindita Bushi

LCA software

GaBi 10.0

Program instructions

Smart EPD General Program Instructions v.1.0, November 2022

Life cycle assessment results

Results per 1 m2 with average thermal resistance Rsi-1 m2K/W of product.

Environmental Impact Assessment Results

Resource Use Indicators

Waste and Output Flow Indicators

Carbon Emissions and Removals

ND = not declared. Life cycle modules: A1-A3 product stage, A4-A5 construction process, B use stage, C end of life, D benefits and loads beyond the system boundary.

Material composition

Hazardous substances

No regulated hazardous or dangerous substances are included in this product.

Scenarios

Transport to the building site (A4)

Fuel type

Diesel

Vehicle type

Truck

Transport distance

1101.41 km

Capacity utilization

78%

End of life (C1-C4)

Collected with mixed construction waste

0.421 kg

Landfill

0.421 kg

Product or material for final disposal

0.421 kg

Product description

Product Identification

Fiberglass batt insulation is a rigid, bonded blanket insulation produced in a range of R-values (thermal resistance). Fiberglass is inorganic and noncombustible. It is made from molten glass and spun or blown into fibers that are then processed into the final product, available in both faced and unfaced varieties. The fibers will not rot or absorb moisture and do not support the growth of mildew, mold, or fungus.

The following fiberglass batt products are covered by this environmental product declaration:

• Kraft Faced Fiberglass

• Panel Deck FSK-25

• FSK-25.

Product Specification

Fiberglass batt insulation is an effective insulation that meets the requirements of ASTM C665 –Fiberglass Batts Thermal Insulation. The batts are installed to insulate floors, walls, ceilings, and attic areas. Batts come with or without facing. The batts can be easily placed and cut, trimmed and shaped to fit small or irregular spaces. The batts are made to be easily installed by pressure fitting between framing, with no fastening required.

Interpretation

LCA Interpretation:

The manufacturing stage dominates the majority of impact categories due to the energy required by the melting and finishing stages. Raw materials are the second largest contributor due to upstream burdens in material extraction. Together, manufacturing (A3) and Raw Materials (A1) represent nearly 90% of impacts. Therefore, these are the two most effective areas for focusing environmental improvements.

While installation (A5) incurs minimal resources, it is the point at which there is 10% product loss and this impact is most noticeable for Eutrophication with a 8% contribution. End of Life disposal (C4) has contributions of 3-4% in acidification, eutrophication and smog formation. Outbound transport is a minor contributor.

There is no impact associated with the use stage. While insulation can influence building energy performance, this aspect is outside the scope of this study. Additionally, it is assumed that insulation does not require any maintenance to achieve its reference service life, which is modeled as being equal to that of the building (i.e., 75 years). No replacements are necessary; therefore, results represent the production of one (1) square meter of insulation at a thickness defined by the PCR functional unit.

At end-of-life, insulation is removed from the building and landfilled. Waste was dominated by the end-of-life disposal of the product. Non-hazardous waste also accounts for waste generated during manufacturing and installation.

Impact assessment and other results are shown for a Cradle to gate, with modules A1-A5 and C1-C4 included system boundary. Modules C1 and C3 are not associated with any impact and are therefore declared as zero.
